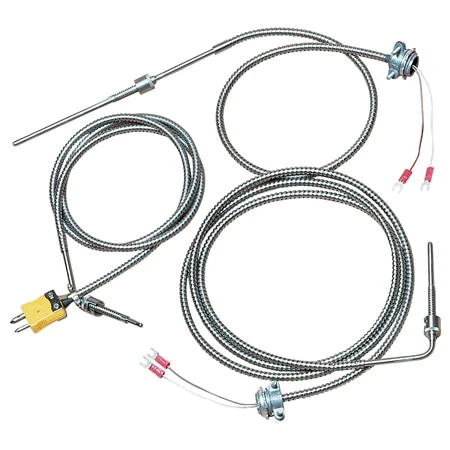

Bayonet Style Thermocouple Probes
Original price was: $73.59.$51.51Current price is: $51.51.
- Service Temperature to 480°C (900°F) Except for Type T Thermocouple
- A Wide Variety of Immersion Lengths, Styles and Mounting Arrangements Are Available
- Standard Configurations for Fast Delivery
- 304 Stainless Steel Construction
- 100% Quality Satisfaction
- Uncompromising quality, every time.
- Quality You Can Trust
- Your questions, our prompt answers.
Low cost extruder type bayonet probes are available off-the-shelf in J, K, T, or E Type Thermocouple in both straight thru and right angle tip configurations. Can be utilized with the optional BTC Pipe Clamp Adapters for pipe mounting.Â
Â
| Thermocouple Type | J, E, K, T |
|---|---|
| Process Temperature Max | 480, 370 |
| Process Temperature Range | 0 to 480°C (32 to 900°F), 0 to 370°C (32 to 700°F) |
| Junction Type | Grounded, Ungrounded |
| Probe Diameter | 0.187 in, 3/16 in |
| Probe Length | 2.25 in, 2 in, 3.5 in, 3 in, 10 in, 11.5 in, 11 in, 12 in, 1.625 in, 2.5 in, 1/4 in, 21/4 in, 2.75 in, 4.5 in, 4.125 in, 4 in, 5.5 in, 5 in, 6.5 in, 6 in, 7.625 in, 6.625 in, 3 1/2 in, 5.25 in, 7.125 in, 2 1/4 in, 7 1/8 in |
| Cable Length | 120 in, 60 in |
| Termination Connection Type | Spade Lugs, Standard Connector, Standard Female Connector, OSTW Male Connector with Cable Clamp, Miniature Connector |
| Additional Feature | Straight Probe, Straight Probe Dual Elements, Immersion Probe, 90 Degree Angle Probe, 90 Degree Angle Probe Dual Elements |
| Category | Thermocouple |
| Process Temperature Unit | °C |
| Process Temperature Min | 0 |
| Sensor Application | Immersion Probe |
| Process Connection Size | Bayonet Style Locking Fitting |
| Sheath Material | 304 Stainless Steel |
| Cable Insulation | Fiberglass with Armored Cable |
