Benchtop Digital ISeries Thermometers Ten-Channel Models

Original price was: $375.00.Current price is: $96.99.

Portable, Rugged Metal Benchtop Enclosure with Tilt Handle
10-Channel Models
Built Around OMEGA’s Award Winning iSeries Meters
5-Year Warranty

SKU: MDSSI8-RTD-EIT-AL Categories: Control & Monitoring, Meters, Process Meters Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

The MDSi8 single channel models have been discontinued. As a possible substitute, please check out the MDS8PT MDS8PT for details. At the same time, we will keep the 10 channel models MDSSi8 till the end of 2018.

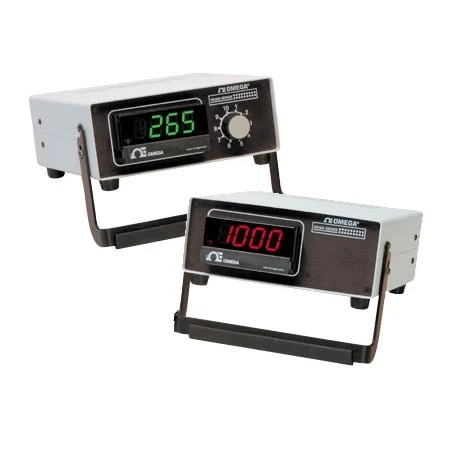

The OMEGA™ MDSSi8 is a 1/8 DIN size (96 x 48 mm) Digital Panel Meter in a rugged benchtop metal enclosure featuring the big iSeries color-changing display. The digits are twice the size of typical 1/8 DIN panel meters. The iSeries meters feature the only LED displays that can be programmed to change color between GREEN, AMBER, and RED at any set point or alarm point. Other options include isolated programmable analog output, serial communications, Modbus and Ethernet.

The UNIVERSAL TEMPERATURE & PROCESS instrument model “i” handles ten common types of thermocouples, multiple RTD’s, and several Process (DC) Voltage and Current ranges.

Ready to Order? Popular models and options shown below. Please Review the Spec Sheet for product details and other models available that will meet your requirements, then order below Using the “Part Number” Ordering Box!

Additional Option	Standard
Communications Protocol	Ethernet with Embedded Web Server
Display Color	Red, Green, Amber
Display Digit Height	21 mm (0.83 in)
Display Type	LED
Form Factor	Benchtop
Input Range	J-210 to 760°C / -346 to 1400°F K-270 to -160°C / -160 to 1372°C -454 to -256°F / -256 to 2502
Number of Display Digits	4 Digits, 9 Segment
Number of Inputs	1
Number of Relays	2
Resolution	1°/0.1° 10 μV process
Retransmission/Analog Output	Two SPDT Mechanical Alarm Relays
RTD Types Supported	100/500/1000 Ω Pt
Specifications Input Type	RTD
Supply Voltage	90 to 240 Vac
ThermocoupleType	Not Applicable
