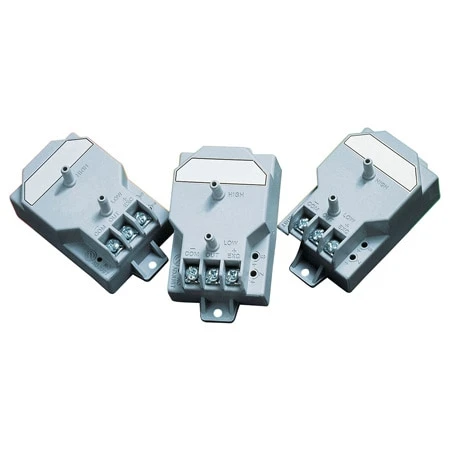

Bidirectional, Differential Low Pressure Transducers

Original price was: $298.66.Current price is: $97.99.

For Dry Gases
Ranges from 0.25 inH2 O to 100 inH2 O
For Use in Building Management, HVAC Ducts or Clean Rooms
Works with Unregulated Voltage Source

Pressure Range

Clear

SKU: PX2650-10D5V Categories: Pressure Measurement, Pressure Transducers Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

SPECIFICATIONS
Excitation: 9 to 30 Vdc unregulated
Output Impedance: <100Ω
Output Span: Set to 5 Vdc ±50 mV
Zero Offset: Set to ±50 mV
Accuracy: ±1% BFSL at constant temperature (includes linearity, repeatability and hysteresis)
Linearity: ±0.98% FS (typical)
Hysteresis: 0.1% FS (typical)
Repeatability: ±0.05% FS Compensated Temperature Range: -18 to 65°C (0 to 149°F)
Thermal Effects: ±0.06%/°C (#177;0.033%/°F)
Proof Pressure: ±10 psi, all ranges
Position Effect: Factory calibration with diaphragm vertical

Range	Zero Offset (%FS/G)
0 to 0.5 in H₂O	0.6
0 to 1 in H₂O	2.2
0 to 5 in H₂O	1.4

Sensor: Capacitive
Media: Air or similar non-conducting gases
Pressure Port: 3/16′ OD pressure fitting for 1/4′ tube
Case: Fire-retardant glass-filled polyester
Mounting: 2 tabs with #8 holes
Electrical Connection: Screw terminals
Weight: 85 g (3 oz)

Pressure Range	0 to 10 inH2O, -0.25 to 0.25 inH2O, 0 to 0.5 inH2O, 0 to 100 inH2O, -10 to 10 inH2O, -1 to 1 inH2O, -25 to 25 inH2O, 0 to 25 inH2O, -2 to 2 inH2O, 0 to 2 inH2O, -50 to 50 inH2O, 0 to 50 inH2O, 0 to 5 inH2O
Pressure Type	Differential
Accuracy Class	> 0.25%
Accuracy Value(compensated range)	±1%
Output Signal	Voltage
Electrical output	0.2 to 5.2 Vdc
Pressure Port Size	1/4"
Pressure Port Type	Barbed Fitting
Connection/Termination	Terminal Block
Operating Temperature Range	-18 to 65 °C (0 to 149 °F)
