SPECIFICATIONS
Excitation: 12 to 36 Vdc
Output: 1 to 5 Vdc (3 wire)
Linearity: 0.3% FS (BFSL)
Hysteresis: 0.02% FS
Repeatability: 0.05% FS
Operating Temperature: -29 to 72°C (-20 to 160°F)
Compensated Temperature: 2 to 57°C (35 to 135°F)
Thermal Effects:
Zero: 0.015% FS/°F
Span: 0.015% rdg/°F
Proof Pressure: 15 psi
Burst Pressure: 20 psi
Static Pressure: 25 psi
Gage Type: Capacitance
Supply Current: <5 mA
Calibration Report: NIST cal at 25, 50, 75 and 100% FS; upscale and downscale provided
Response Time: 250 ms
Wetted Parts: Dry, clean, non-corrosive gases only
Enclosure: NEMA 2 (IP62), 107 H x 117 W x 53 mm D (4.2 x 4.6 x 2.1′)
Pressure Port: ¼ barbed fittings (tubing TY-316-100)
Electrical Connections.: Screw terminal
Weight: 368 g (13 oz)

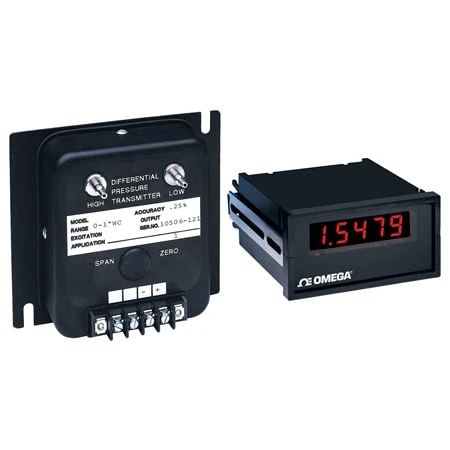

Bidirectional, Differential Low Pressure Transmitters
$355.00 Original price was: $355.00.$97.99Current price is: $97.99.
- Clean Rooms
- HVAC
- Laboratory Fume Hoods
- NIST Traceable Calibration Certificate
- 100% Quality Satisfaction
- Uncompromising quality, every time.
- Quality You Can Trust
- Your questions, our prompt answers.

| Pressure Range | -10 to 10 inH2O, -0.05 to 0.05 inH2O, -1 to 1 inH2O, -0.1 to 0.1 inH2O, 0 to 1 inH2O, 0 to 0.1 inH2O, -0.25 to 0.25 inH2O, 0 to 0.25 inH2O, 0 to 2 inH2O, 0 to 3 inH2O, 0 to 0.3 inH2O, -5 to 5 inH2O, -0.5 to 0.5 inH2O, 0 to 5 inH2O, 0 to 0.5 inH2O, 0 to 0.75 inH2O, 0 to 10 inH2O, -25 to 25 inH2O, -2.5 to 2.5 inH2O, 0 to 25 inH2O, -50 to 50 inH2O, 0 to 50 inH2O, 0 to 1.5 inH2O |
|---|---|
| Output Signal | Voltage, Current |
| Electrical output | 1 to 5 Vdc, 4 to 20 mA |
| Pressure Port Type | Barbed Fitting, NPT Male |
| Pressure Type | Differential |
| Accuracy Class | > 0.25% |
| Accuracy Value(compensated range) | ±0.3% |
| Pressure Port Size | 1/4" |
| Connection/Termination | Terminal Block |
| Operating Temperature Range | -29 to 72 °C (-20 to 160 °F) |
