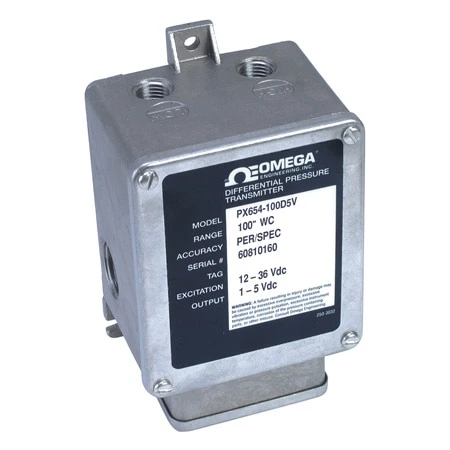

Bidirectional, Differential Pressure Transmitters

Original price was: $391.00.Current price is: $96.99.

IDEAL APPLICATIONS:
Use With Boiler Inlet Air
HVAC
Fume Hoods

Pressure Range

Accuracy Class

Accuracy Value(compensated range)

Output Signal

Electrical output

Clear

SKU: PX654-0.1D5V Categories: Pressure Measurement, Pressure Transducers Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

SPECIFICATIONS
Excitation: 12 to 36 Vdc
Output: 1 to 5 Vdc
Linearity: 0.3% FS (BFSL)
Hysteresis: 0.02% FS
Repeatability: 0.05% FS
Operating Temp: -29 to 85°C (-20 to 185°F)
Compensated Temp: -18 to 72°C (35 to 160°F)
Thermal Effects:
Zero: 0.015% FS/°F
Span: 0.015% FS/°F
Proof Pressure: 10 psi
Burst Pressure: 50 psi
Static Pressure: 100 psi
Gage Type: Capacitance
Supply Current: <5 mA
Calibration Report: NIST cal at 25, 50, 75 and 100% FS; upscale and downscale provided
Response Time: 250 ms
Wetted Parts: Dry, clean, non-corrosive gases only
Enclosure: NEMA 4X (IP65), 137 L x 76 W x 64 mm D (5.4 x 3 x 2.5′)
Pressure Port: ¼ NPTF
Electrical Connections: Screw terminal (two ½ NPTF conduit)
Weight: 955 g (2.1 lb)

Pressure Range	0 to 0.1 inH2O, -0.05 to 0.05 inH2O, -1 to 1 inH2O, -0.1 to 0.1 inH2O, 0 to 1 inH2O, -0.25 to 0.25 inH2O, 0 to 0.25 inH2O, 0 to 2 inH2O, 0 to 3 inH2O, -5 to 5 inH2O, -0.5 to 0.5 inH2O, 0 to 5 inH2O, 0 to 0.5 inH2O, -100 to 100 inH2O, 0 to 100 inH2O, -10 to 10 inH2O, 0 to 10 inH2O, 0 to 200 inH2O, -25 to 25 inH2O, -2.5 to 2.5 inH2O, 0 to 25 inH2O, -50 to 50 inH2O, 0 to 50 inH2O
Accuracy Class	> 0.25%, 0.1% to 0.25%
Accuracy Value(compensated range)	±0.3%, ±0.15%
Output Signal	Voltage, Current
Electrical output	1 to 5 Vdc, 4 to 20 mA
Pressure Type	Differential
Pressure Port Size	1/4"
Pressure Port Type	NPT Female
Connection/Termination	Conduit
Operating Temperature Range	-29 to 85 °C (-20 to 185 °F)
