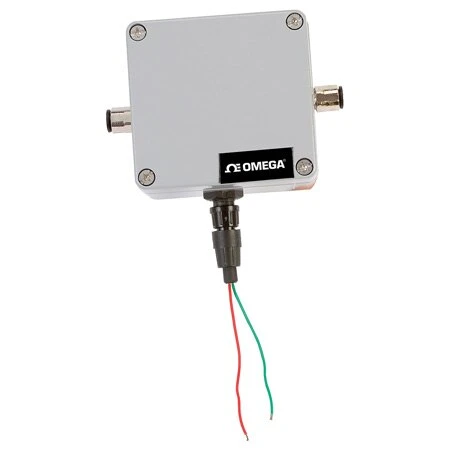

Carbon Monoxide Transmitter

Description

The TXCO-50 Series of carbon monoxide transmitters is a simple, accurate and very economical way to measure CO in the 0 to 50 ppm levels. For special ranges please consult Omega.

The TXCO-50 sensor uses a special electro chemical cell to measure the CO concentration. The sensor meets the industrial requirements for accuracy, sensitivity and ease of use.

The transmitter comes fully calibrated and requires no calibration for two years. After two years the TXCO-50 can be calibrated with a CO gas. Typical sensor life is up to 5000 ppm hrs.

Specifications
Measuring Range: 0 to 50 ppm CO
Special Ranges: Consult OMEGA
Calibration: Using a known CO calibration gas that is NIST traceable
Accuracy:
&nbsp&nbsp&nbsp&nbsp±2% FSD T = constant
&nbsp&nbsp&nbsp&nbsp±5% FSD 0>T>50°C (122°F)
Response Time: 90% FSD at 20°C (68°F) Operating Temperature: 0 to 50°C (32 to 122°F)
Warm Up Time: 2 minutes
Pressure: 0.1 to 1 bar
Signal Output: 4 to 20 mA/DC loop power
Voltage: 24 Vdc
Load: Type 470 Ω at 18 Vdc maximum 700 Ω
Housing: NEMA 4 (IP65)
Dimensions: 80 L x 75 W x 55 mm D (3.15 x 2.95 x 2.16″)
Enclosure: Painted aluminum
Connection: ¼” tubing
Weight: 1.0 kg (2.2 lb)
