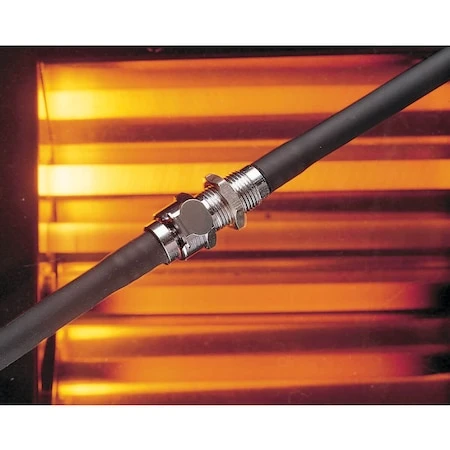

Chrome-Plated Brass Mechanically Keyed Quick Couplings

Original price was: $39.31.Current price is: $27.52.

Available in Chrome-Plated Brass
Three Keyed, Non-Interchangeable Combinations
Keyed Combinations Have Same Color-Code
Available in Panel Mount and Pipe Thread Bodies

Shape

Connection Style

Thread Type

Connection Size

Tubing Diameter # 1

Features

Clear

SKU: FT-MC10-02-K2 Categories: Flow Instruments, Flow Measurement Accessories, Pipe and Tube Fittings Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

Keyed OMEGA™ quick couplings are specifically designed for small flexible hose and plastic tubing applications which require positive mechanical connections and non-interchangeable lines. They provide economical, keyed, high reliability, fool proof connections that are compatible with lower pressure and size requirements for instrumentation applications.

Warning: Standard thermoplastic and chrome-plated brass quick disconnects cannot be interchanged with keyed quick disconnect couplings because they will leak.

1/8′ Flow – COUPLING BODIES

Pipe Thread

MALE THREAD	STRAIGHT THRU MODEL NO.	SHUTOFF MODEL NO.
1/8′ NPT	FT-MC10-02-K*	FT-MCD10-02-K*
1/4′ NPT	FT-MC10-04-K*	FT-MCD10-04-K*

Panel Mount with Hose Barb

TUBING	STRAIGHT THRU MODEL NO.	SHUTOFF MODEL NO.
1/8′ ID	FT-MC16-02-K*	FT-MCD16-02-K*
1/4′ ID	FT-MC16-04-K*	FT-MCD16-04-K*

Panel Mount Ferruless Polytube Fitting†, PTF

TUBING	STRAIGHT THRU MODEL NO.	SHUTOFF MODEL NO.
1/4′ OD x .170′ ID	FT-MC12-04-K*	FT-MCD12-04-K*

1/8′ Flow – INSERTS

Pipe Thread

MALE THREAD	STRAIGHT THRU MODEL NO.
1/8′ NPT	FT-MC24-02-K*

Hose Barb

TUBING	STRAIGHT THRU MODEL NO.
1/8′ ID	FT-MC22-02-K*
1/4′ ID	FT-MC22-04-K*

Ferruless Polytube Fitting†, PTF

TUBING	STRAIGHT THRU MODEL NO.
1/4′ OD x .170′ ID	FT-MC20-04-K*

†PTF fittings are designed for semi-rigid tubing i.e. polyethylene, nylon, etc., and polyurethane tubing.

Type	Quick Coupling Socket, Quick Coupling Plug
Shape	Straight, Straight Panel Mount
Connection Style	Threaded, Barbed, Compression Fitting
Thread Type	NPT Male, Not Applicable
Connection Size	1/8", Not Applicable, 1/4"
Tubing Diameter # 1	Not Applicable, 1/8" ID, 1/4" ID, 1/4" OD
Features	Straight Thru, Color Yellow, Straight Thru, Color Blue, Shutoff, Color Orange, Shutoff, Color Yellow, Shutoff, Color Blue
Tubing Diameter # 2	Not Applicable
Material	Chrome-Plated Brass
