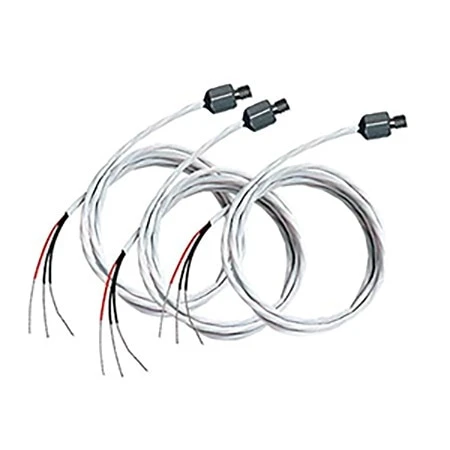

Class B RTD Sensors For Specialized Applications

Original price was: $288.76.Current price is: $97.99.

Popular Sensor Styles Stocked for Immediate Delivery
Industrial Grade (Class “B”, ±0.12%) Accuracy
6 Styles: Air Probe, Surface Probe, NPT threaded probe, Tab Mount probe, Screw on, Flange Mount
Sold in Economical 3-Packs

Process Temperature Min

Process Temperature Max

Process Temperature Range

Sensor Application

Accuracy

Sheath Material

Probe Diameter

Probe Length

Cable Insulation

Termination Connection Type

Clear

SKU: RTD-805-B Categories: Probes with Lead Wires, Temperature Probes Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

The RTD-800 Series probes are made with high performance industrial grade Class “B” RTD sensors assembled in 6 styles and packaged in a convenient 3-pack. Typical Applications Include: Environmental Monitoring, Performance Testing, Climate Control, HVAC, Thermal Protection of Electronic Products (Power Supplies, Electronic Racks, and Enclosures Temperature) and Monitoring of Processes, Equipment, and Structures

Process Temperature Min	-50, -29, -200
Process Temperature Max	230, 180, 750
Process Temperature Range	-50 to 230°C (-58 to 446°F), -29 to 180°C (-20 to 356°F), -50 to 230°C (-60 to 445°F), -200 to 750°C (-328 to 1380°F)
Sensor Application	Air Probe, Immersion Probe
Accuracy	Class B per IEC60751, Class A per IEC60751
Sheath Material	304 Stainless Steel, Glass-filled Nylon
Probe Diameter	0.500 in, Not Applicable, 0.125 in
Probe Length	1.25 in, Not Applicable, 4.5 in, 1.50 in
Cable Insulation	PFA, PFA with M4 Thread
Termination Connection Type	Stripped Leads, 3-Prong Miniature Connector, 3-Prong Standard Connector, 1/8" NPT
Category	RTD
Process Temperature Unit	°C
Nominal Resistance	100 Ω
Number Of Wires	3
Wire Gauge	26 AWG
Cable Length	40 in
