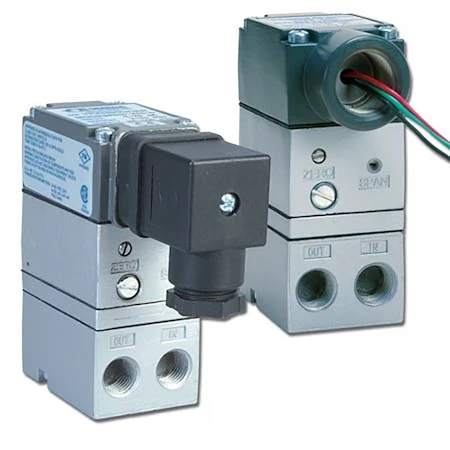

Compact Current I/P To Pressure Converter With High Accuracy

Original price was: $353.00.Current price is: $99.99.

Compact Size for High Density Mounting
NEMA-4X (IP-65) Enclosure
4 to 20 mA Loop Powered
Conduit or DIN Connector Wiring

Output Range

Connection

Accuracy

Clear

SKU: IP610-X60 Categories: Control & Monitoring, Controllers, Pressure Regulators Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

The IP610 is an electronic pressure regulator that converts a variable 4 to 20 mA signal to a proportional pneumatic output. Its compact housing, accessible ports and easy adjustments provide an ideal answer to applications that are space-constrained. This economical instrument provides precision air pressure regulation to actuators, valves, positioners and other final control elements. An integral volume booster provides high flow capacity, increasing control speed in critical applications. Multiple choices for wiring and porting simplify installation and decrease the time required to do so. In addition to standard wall, panel or pipe mounting, an optional DIN rail mounting kit is available.

Model No.	Range (psi)	Accuracy	Loop Load	Air Consumption	Pressure Supply (psi)	Flow Capacity
IP610-X15	3 to 15	±1.0% span	3.6V @ 20 mA	1.8 scfh @ mid-range	20 to 100	4.5 scfm @ 25 psig 12 scfm @ 100 psig
IP610-X27	3 to 27	±1.0% span	4.8V @ 20 mA	1.8 scfh @ mid-range	32 to 100	4.5 scfm @ 25 psig 12 scfm @ 100 psig
IP610-X30	6 to 30	±1.0% span	4.8V @ 20 mA	1.8 scfh @ mid-range	35 to 100	4.5 scfm @ 25 psig 12 scfm @ 100 psig
IP610-X60	2 to 60	±2.5% span	4.9V @ 20 mA	1.8 scfh @ mid-range	65 to 150	12 scfm @ 100 psig
IP610-X120	3 to 120	±2.5% span	5.6V @ 20 mA	1.8 scfh @ mid-range	125 to 150	20 scfm @ 150 psig
IP610-30	0 to 30	±2.5% span	5.8V @ 20 mA	6.0 scfh @ mid-range	35 to 100	12 scfm @ 25 psig 20 scfm @ 150 psig
IP610-60	0 to 60	±2.5% span	6.0V @ 20 mA	6.0 scfh @ mid-range	65 to 150	12 scfm @ 25 psig 20 scfm @ 150 psig
IP610-120	0 to 120	±2.5% span	6.3V @ 20 mA	6.0 scfh @ mid-range	125 to 150	12 scfm @ 25 psig 20 scfm @ 150 psig

SPECIFICATIONS
Agency Approvals: FM and CSA Intrinsically Safe
  IP610: Class I,II,III, Div. 1, Groups C, D, E, F & G
  IP610-D: Class I, Div. 1, Groups C & D
  (output pressure, does not affect rating)
Input Signal: 4 to 20 mA loop powered
Accuracy: Includes linearity, hysteresis and repeatability
Linearity: ±0.5% of span (±1.5% for zero based units)
Hysteresis & Repeatability: ±0.5% of span (±1% for zero based units)
Supply Pressure Sensitivity: 0.1% of span per psi (±0.02% for zero based units)
RFI/EMI Effect: 0.5% of span change in output pressure per En 61000-4-3:1998,
Amendment 1, Performance Criterion A
Temperature Limits: -30 to 65°C (-20 to 150°F)
Max Flow Capacity: 12 SCFM for all except 120 psi 20 SCFM
Media: Clean, dry, oil-free, instrument air, filtered to 40 micron
Pressure Ports: ¼ NPT female
Electrical Connections: ½ NPT female conduit or DIN 43560 connector
Mounting: Direct wall, panel, 1½’ pipe, or optional DIN rail
Materials:
  Housing: Chromate treated aluminum with epoxy paint, NEMA-4X (IP65) rated
  Elastomers: Buna-N
  Trim: Stainless Steel and zinc plated brass
Dimensions:(offset units) 93.7 mm H x 38.1 mm W x 74.7 mm D (3.69′ x 1.50′ x 2.94′)
(zero based units) 130.0 mm H x 38.1 mm W x 74.7 mm D (5.12′ x 1.50′ x 2.94′)
Weight: 590 g (1.3 lb) or 770 g (1.7 lb) for zero based units

Output Range	2 to 60 psi, 0 to 120 psi, 0 to 30 psi, 0 to 60 psi, 3 to 120 psi, 3 to 15 psi, 3 to 27 psi, 6 to 30 psi
Connection	Conduit, DIN 43650 A
Accuracy	±2.5%, ±1.0%
Input Signal	4 to 20 mA
Pressure Port Type	NPT Female
Pressure Port Size	1/4"
