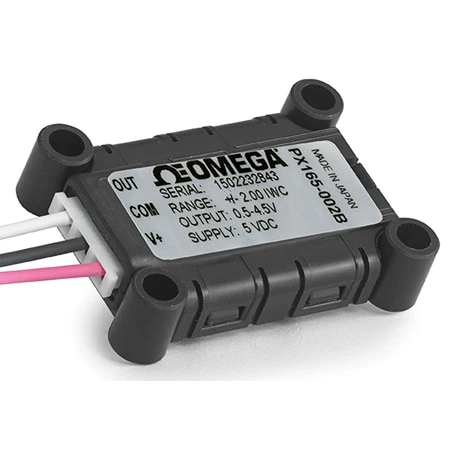

Compact, Differential, Low Pressure Transducers

Original price was: $277.19.Current price is: $99.99.

Ultra low differential pressure ranges – as low as 0.25 inH2O
Compact and PCB mountable
Durable PBT case
Fast and easy electrical connections with optional connector, see Accessories

Pressure Range

Clear

SKU: PX165-002U Categories: Pressure Measurement, Pressure Transducers Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

The PX165 differential pressure transducer series provides a solution to measure differential pressure in low and ultra low ranges, down to 0.25 inches of water. These sensors are quite compact, coming in at only 1.18″” x 1.65″” x 0.37 and weigh just 0.35 oz. this makes them ideal for circuit board (PCB) mounted applications or when space is at a premium. They come standard with pins but are also compatible with a JST BHR-03VS-1 connector for quick electrical connections. A particular advantage to purchasing this low differential pressure solution from Omega is the flexibility to order large quantities for OEM applications or lower quantities that are reasonably priced for small projects.

The Static Pressure should be applied to both ports simultaneously to avoid exceeding the Proof Pressure rating.

The new PX165 series also serves as a suitable replacement in many cases for our PX160 series that contained PX162, PX163, and PX164 part numbers.

Pressure Range	0 to 2 inH2O, -1 to 1 inH2O, 0 to 1 inH2O, -2 to 2 inH2O, -5 to 5 inH2O, 0 to 5 inH2O, -10 to 10 inH2O, -0.1 to 0.1 inH2O, 0 to 10 inH2O, 0 to 15 inH2O, 0 to 20 inH2O, -0.25 to 0.25 inH2O, 0 to 0.25 inH2O, -0.5 to 0.5 inH2O, 0 to 0.5 inH2O, 0 to 0.75 inH2O
Pressure Type	Differential
Accuracy Class	> 0.25%
Accuracy Value(compensated range)	±1%
Output Signal	Ratiometric mV/V
Electrical output	0.5 to 4.5 Vdc
Pressure Port Size	3/32"
Pressure Port Type	Tube
Connection/Termination	Pins
Operating Temperature Range	-20 to 60 °C (-4 to 140 °F)
Additional Features	PCB Mountable
