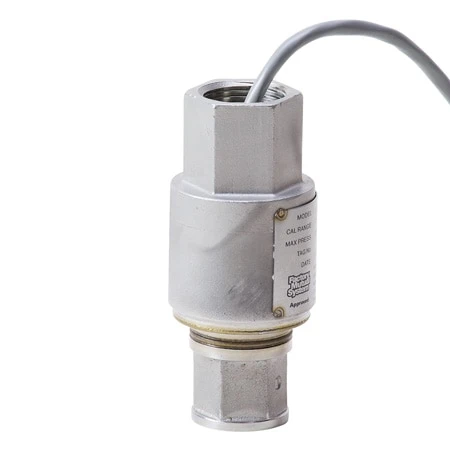

Compact, Intrinsically Safe Pressure Transducers

Original price was: $399.00.Current price is: $99.99.

0.3% Full Scale Accuracy
Compact Size
1/2 NPT Process Connection
3/4′ Conduit Connection with 24′ Cable

Pressure Range

Pressure Type

Clear

SKU: PX831-100GI Categories: Pressure Measurement, Pressure Transducers Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

The PX831 is a durable, accurate, fixed range transmitter designed to give years of stable performance in even the toughest environmental and media conditions. The small size and lightweight of the PX831 eliminates the need for complicated mounting hardware and mechanical supports, thereby reducing installation time substantially. The in-line connection permits simple field wiring without the need for additional hardware, adding to the speed and ease of installation. With its all welded design, the PX831 is weatherproof and capable of withstanding a direct spray with forces up to 200 psi without internal leakage. All 316 stainless steel housing and wetted parts make it compatible with corrosive media and hazardous environments. The PX831 is designed to meet FM explosion-proof ratings and NACE standards for offshore requirements.

SPECIFICATIONS
Excitation: 12-30 Vdc
Output: 4 to 20 mA (2 wire)
Max Loop Resistance: 900 Ohms @ 30 Vdc
Accuracy: ±0.3% of span @ 25°C (includes linearity, hysteresis, and repeatability)
Zero Offset: 4 mA ±2% of span
Span: 16 mA ±1% of span
Storage Temperature: -40 to 100°C (-40 to 212°F)
Process Temperature: -40 to 100°C (-40 to 212°F)
Ambient Temperature: -40 to 60°C (-40 to 140°F)
Thermal Effects: (Zero and span combined) ±2% per 50°F (28°C) between -40 to 60°C (-40 to 140°F)
Proof Pressure: 300% of rated pressure
Humidity Limits: 0 to 100% RH
Vibration Effect: ±0.1% FS for 3 g to 200Hz
Housing: 316 stainless steel, NEMA-4 rated
Wetted Parts: 316 L stainless steel
Fill Fluid: DC 200 silicone
Process Connection: 1/2 NPT female
Electrical Connection: 24′, 22 AWG cable with 3/4 NPT female conduit port
Weight: 374 g (0.87 lb)
Approvals
Factory Mutual: Explosion-proof for Class I, Division I, Groups B, C and D; Class II Groups E, F and G; and Class III Hazardous Locations and Indoor and Outdoor NEMA 4 (IP65) Enclosure
Canadian Standards Association: Explosion-proof for Class I, Division I, Groups B, C and D; Class II Groups E, F and G; and Class III Hazardous Locations and meets CSA requirements for Enclosure 4

Pressure Range	0 to 100 psi, 0 to 15 psi, 0 to -30 inHg
Pressure Type	Gauge, Vacuum
Accuracy Class	> 0.25%
Accuracy Value(compensated range)	±0.3%
Output Signal	Current
Electrical output	4 to 20 mA
Pressure Port Size	1/2"
Pressure Port Type	NPT Female
Connection/Termination	Conduit
Operating Temperature Range	-40 to 60 °C (-40 to 140 °F)
Additional Features	Not Applicable
