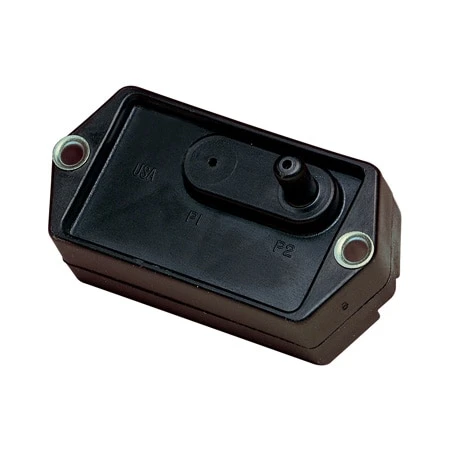

Compact, Low Pressure Transducers For Clean Gases

Original price was: $178.77.Current price is: $97.99.

This series has been discontinued. Only in stock models are available. Please see our new PX165 series as a potential alternative.

Pressure Range

Pressure Type

Operating Temperature Range

Clear

SKU: PX142-001D5V Categories: Pressure Measurement, Pressure Transducers Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

This series has been discontinued. Only in stock models are available. Please see our new PX165 series as a potential alternative.

The PX140 series has been discontinued. Please contact our Pressure Engineering department.

SPECIFICATIONS
Excitation: 8 Vdc regulated (7 to 16 limits) @ 8 mA
Output: 1 to 6 Vdc (±2.5 Vdc PX143)
Linearity: ±0.75% FS BFSL (±1.5% FS PX143)
Hysteresis: 0.15% FS (0.30% FS ≤5 psi range)
Zero Balance: 1.0 Vdc ±0.05 (3.50 Vdc ±0.05 PX143)
Operable Overpressure: 3x range except (60 psi for 30 psi range 20 psi for 5 psi)
Response Time: 1 ms
MEDIA COMPATIBILITY
Absolute and P1: Dry gases only
P2: Limited only to those media that will not attack polyester silicon borosilicate glass or epoxy adhesive
Compensated Temperature Range: -18 to 63°C (0 to 145°F)

Pressure Range	-1 to 1 psi, 0 to 1 psi, 0 to 30 psi, -15 to 15 psi
Pressure Type	Differential, Vacuum
Operating Temperature Range	-18 to 63 °C (0 to 145 °F), ±0.75%
Accuracy Class	> 0.25%
Accuracy Value	±0.75%
Output Signal	Voltage
Electrical Output	1 to 6 Vdc
Pressure Port Size	5mm
Pressure Port Type	Tube
Connection/Termination	Pins
