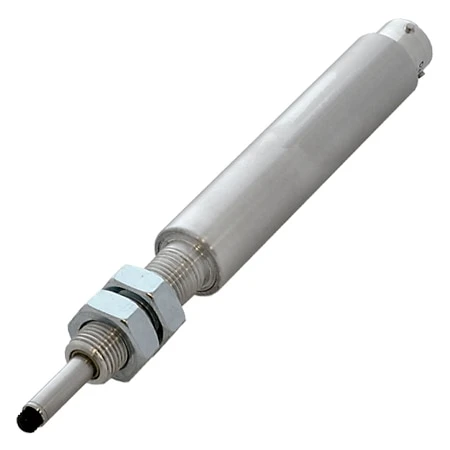

LDI-G19 sensors have a 19 mm (0.75″) diameter aluminum or stainless steel body with a 1/2-20 UNF-2A thread 38 mm (1.5″) along with two 19 mm (0.75″) hex jam nuts for drop-in installation in place of a spring-loaded DC LVDT gage head. These sensors utilize a probe equipped with a No. 9 contact tip and are offered with a PT02-10-6P connection (mating connector sold separately.) Operating from a variety of DC voltages, these sensors are available with a choice of one of four analog outputs. Calibration and set-up is simplified with one wire field programming feature, this provides the ability to match the endpoints of the sensor’s analog output with the ends of the range of motion of the assembly to which the sensor is attached. This feature permits a user to optimize the position measuring system’s resolution over its full range of motion.
Specifications:
Analog I/Os:
0 to 10V output with 12 to 30V input, 35 mA max;
4 to 20 mA (3-wire) output with 18 to 30V input, 60 mA max at 75°C (167°F max)
Measuring Range: 6 to 100 mm (0.25 to 4″) full scale
Linearity Error: ±0.15% of Full Scale Output (FSO) typical, ±0.25% max
Resolution: 0.025% of FS
Update Rate: 300 Hz nominal
Operating Temperature: -20 to 85°C (-4 to 185°F)
Temperature Coefficient: 0.015% of FS/degree°C
Vibration: 5 to 20 Hz, 0.5″ p-p; 20 to 2000 Hz, 4.2 g p-p
Shock: 1000 g, 11 ms
Terminations: IP67
Humidity: 95% RH, non-condensing
Housing Material: Stainless steel
| Wiring Table | |
|---|---|
| Function | PT02-10 Pin |
| + Power Input | E |
| Ground | D |
| Analog Output | A |
| Field Programmability | B |
| ‘A’ Nominal Range | ‘B’ Body Length | Spring Rate | Max. Force | ||||
|---|---|---|---|---|---|---|---|
| mm | Inches | mm | Inches | kgf/cm | Lbf/in | kgf | Lbf |
| 6.35 | 0.25 | 88.9 | 3.5 | 0.134 | 0.75 | 0.41 | 0.9 |
| 12.7 | 0.5 | 88.9 | 3.5 | 0.134 | 0.75 | 0.41 | 0.9 |
| 25.4 | 1 | 101.6 | 3.5 | 0.134 | 0.75 | 0.41 | 0.9 |
| 50.8 | 2 | 129.0 | 5.08 | 0.077 | 0.43 | 0.45 | 1 |
| 76.2 | 3 | 156.5 | 6.16 | 0.054 | 0.3 | 0.45 | 1 |
| 101.6 | 4 | 184.1 | 7.25 | 0.041 | 0.23 | 0.45 | 1 |
