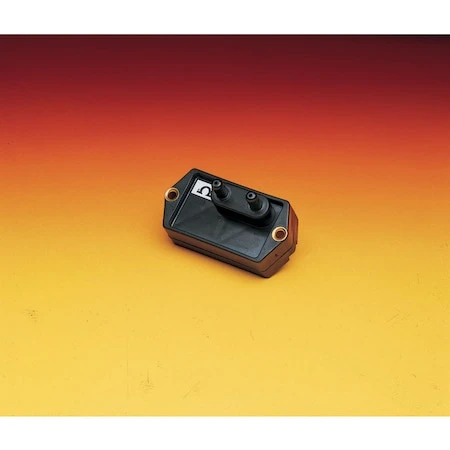

Compact, Ultra Low Pressure Transducers For Clean Gases
Original price was: $302.00.$97.99Current price is: $97.99.
- This series has been discontinued. Only in stock models are available. Please see our new PX165 series as a potential alternative.
- 1 to 6 V Output Span
- Gage Vacuum Differential Pressures
- 8 V dc Excitation
- 100% Quality Satisfaction
- Uncompromising quality, every time.
- Quality You Can Trust
- Your questions, our prompt answers.
This series has been discontinued. Only in stock models are available. Please see our new PX165 series as a potential alternative.
SPECIFICATIONS
Excitation: 8 Vdc regulated (6 to 12 Vdc at 20 mA) (PX163-120D5V uses 10 Vdc)
Output: 1 to 6 Vdc
Linearity: ±1.0% FS BFSL at specified voltage; ±1.5% max for PX163-120BD5V
Hysteresis and Repeatability: ±0.25% FS
Zero Balance: 1 Vdc ±0.05 (3.5 ±0.05 Vdc PX163 Series)
Operable Temperature Range: -40 to 85°C (-40 to 185°F)
Compensated Temperature Range: -18 to 63°C (0 to 145°F)
   PX163 and 164: 5 to 45°C (41 to 113°F)
Operable Overpressure: 5 psi
Media Compatibility:
   P1: Dry gases only
   P2: Gage: Limited to media that will not attack polyester silicon borosilicate glass or epoxy
Response Time: 1 ms
Mating Connector: CX136-3 (sold separately)
| Pressure Range | -2.5 to 2.5 inH2O, 0 to 5 inH2O |
|---|---|
| Pressure Type | Differential |
| Accuracy Class | > 0.25% |
| Accuracy Value (compensated range) | ±1% |
| Output Signal | Voltage |
| Electrical Output | 1 to 6 Vdc |
| Pressure Port Size | 5mm |
| Pressure Port Type | Tube |
| Connection/Termination | Pins |
| Operating Temperature Range | -40 to 85 °C (-40 to 185 °F) |
