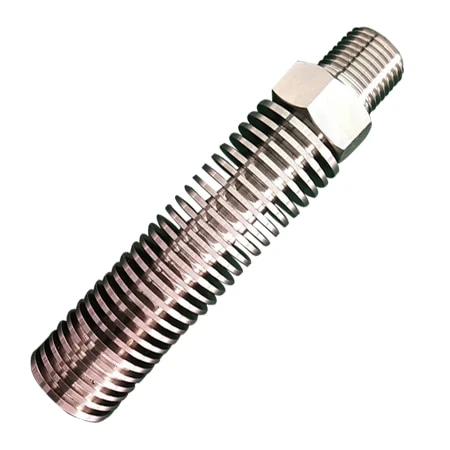

COOLING ELEMENT

Original price was: $174.21.Current price is: $98.99.

Made from 316L SS to Withstand Most Process Media
300°C (570°F) Maximum Temperature at 14,500 psi (1,000 bar)
5000 psi Maximum Pressure at 38°C (100°F)
0.4 kg (15 oz) Weight

Max Temperature

Connection Size

Max Pressure

Clear

SKU: PG-CTN2-G03 Categories: Pressure Cooling Elements, Pressure Measurement, Pressure Measurement Accessories Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

Description

Extreme process temperatures reduce the accuracy, life and can possible damage pressure transmitters or gauges. The Omega cooling element is made from cast 316L stainless for maximum corrosion resistance and compatibility with process media. When used, in still air, cooling element can reduce a 300°C (570°F) liquid process temperature down to 25°C (77°F) at the active portion of the sensing element. This rugged machined bar stock construction allows the unit to operate to pressures of 100MPa (14,500 psi) at full temperature.

SPECIFICATIONS
Connection: NPT male x NPT female
Body Material: 316L stainless steel
Weight: 15 oz (0.4 kg)
Operating Parameters: 200°C (570°F) maximum at 100MPa (14,500 psi)
Length: 135 mm (5.32″) for -G03 or 105 mm (4.06″) for -G02, maximum dia 32 mm (1.25″)
