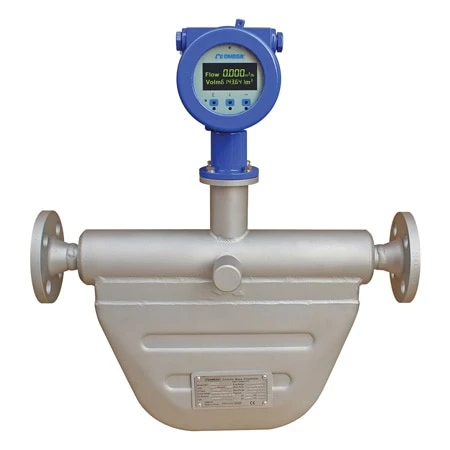

Coriolis Mass Flow Meter
Original price was: $350.00.$99.99Current price is: $99.99.
- Mass Flow Rate, Volume, Density and Temperature Measurements
- Rugged Meters with No Moving Parts Results in Minimal Maintenance
- Accuracy Over a Wide Flow Range From a Single Meter Optimizes Plant Efficiency
- No Flow Conditioning or Straight Pipe Runs Required, Making Installation Simplified and Less Expensive
- 100% Quality Satisfaction
- Uncompromising quality, every time.
- Quality You Can Trust
- Your questions, our prompt answers.
The FMC-5000 Coriolis Mass Flow Meter is designed according to the Coriolis Force Principle. It is widely used for flow measurements and custody transfer in many industries such as petroleum, petrochemical, chemical, pharmaceutical, pulp and paper, food and dairy, and more. As an advanced flow and density measurement instrument, it is widely used in the measurement of liquids, gases and slurries, and garners a high reputation among customers around the globe. Coriolis meters are typically used in applications like batch control, blending, filling, dosing, custody transfer, process gas measurements, and more.
The FMC-5000 Series Coriolis Meter is designed according to the principle of Coriolis force. Under the alternating current effect, the electromagnetic coils mounted on the measuring tube will make two parallel measuring tubes vibrating at a certain fixed frequency. Whenever mass (either liquid or gas) flows through the measuring tubes, Coriolis force is generated, causing a “bending” or “deflection” in the top of the tubes. This deflection is sensed as a phase shift between two electronic pick-ups mounted on the tubes. The degree of phase shift is directly proportional to the mass flow within the tubes. The mass flow rate can be calculated by detecting the phase shift of the tubes. The temperature is also measured and used for compensation.
Specifications
Flow Range: See charts below
Connection: ANSI, DIN, JIS, or Sanitary Tri-Clamp flanges
Maximum Pressure: 16 bar (230 psi), [Optional: 25 bar (360 psi), 40 bar (580 psi) and 63 bar (913.7 psi)] Body Material: 304 Stainless Steel
Measuring Tube Material: 316 L SS
Process Temperature Range:
Integrate Type: -50 to 125°C (-58 to 257°F)
Remote Type (-R): -50 to 200°C (-58 to 392°F)
Ambient Temperature: -40 to 55°C (-40 to 131°F)
Working Humidity: (5 to 95%) RH at 25°C (77°F)
Flow Accuracy/Repeatability:
FMC-5100: 0.1/0.05% (Liquid Only)
FMC-5200: 0.2/0.1% (Liquid Only)
FMC-5500: 0.5/0.25%
Density Measuring:
Range: 0.2 to 3.0 g/cm3
Error: ± 0.002 g/cm3
Repeatability: 0.001 g/cm3
Temperature Accuracy: ±1.0°C
Protection: NEMA 4X (IP65)
Approvals: CE, RoHS
Communications: RS485 (RTU Modbus®), HART® (-HART option)
Pulse Output: 0 to 10 kHz, ± 0.075% Full Scale
Current Output: 4 to 20 mA, 0.005% Full Scale
Power Supply: 18 to 36 Vdc, 85 to 265 Vac (-AC option), 15 W
| Media Type | Liquid, Gas |
|---|---|
| Flow Range | 100 to 3,000 kg/h, 200 to 3,000 kg/h, 600 to 8,000 kg/h, 2,400 to 24,000 kg/h, 5,000 to 45,000 kg/h, 8,000 to 120,000 kg/h, 15,000 to 200,000 kg/h, 50,000 to 500,000 kg/h, 150 to 3,000 kg/h, 400 to 8,000 kg/h, 1,200 to 24,000 kg/h, 2,500 to 45,000 kg/h, 5,430 to 120,000 kg/h, 5,500 to 120,000 kg/h, 10,000 to 200,000 kg/h, 25,000 to 500,000 kg/h, 75 to 3,000 kg/h, 200 to 8,000 kg/h, 300 to 8,000 kg/h, 800 to 32,000 kg/h, 1,000 to 24,000 kg/h, 1,250 to 50,000 kg/h, 2,000 to 45,000 kg/h, 3,500 to 140,000 kg/h, 2,000 to 120,000 kg/h, 5,000 to 200,000 kg/h, 6,000 to 200,000 kg/h, 12,500 to 500,000 kg/h, 10,000 to 500,000 kg/h |
| Accuracy | ±0.5%, ±0.1%, ±0.2% |
| Max Process Temperature | 125 °C (257 °F), 200 °C (392 °F) |
| Process Connection Type | Flange – ANSI, Flange – DIN, Flange – JIS, Tri-Clamp |
| Process Connection Size | 1/2", 1", 1 1/2", 2", 3", 4", 6" |
| Features | Integral Display, Remote Mounted Display/Transmitter, Integral Display and DC Explosion-Proof |
| Category | Meter |
| Communications Protocol | RS485 |
| Output Signal | 0 to 10 kHz, 4 to 20 mA |
| Wetted Materials | 304 SS, 316 SS |
| Display | LCD |
| Max Operating Pressure | 230 psi |
