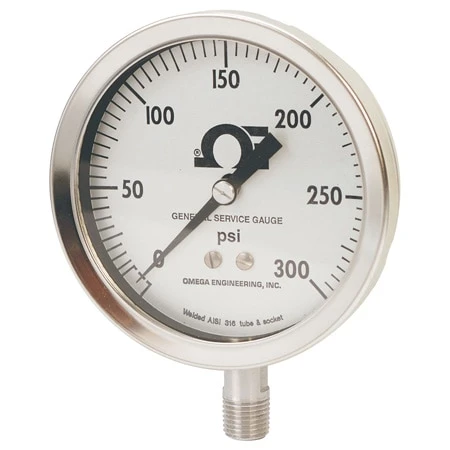

Corrosion, Weather, And Dust Resistant Pressure Gauges

Original price was: $142.49.Current price is: $96.99.

2½’ and 3½’ Dials
Stem and Panel Mount Styles
Weather Resistant Stainless Steel Case
316SS Wetted Parts

Pressure Type

Pressure Range Units

Pressure Range Min

Pressure Range Max

Accuracy Class

Dial Size

Additional Features

Clear

SKU: PGS-25L-100 Categories: Analog Pressure Gauges, Pressure Gauges, Pressure Measurement Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

To combat hostile environments, this general service gauge is corrosion, weather, and dust resistant. Mounting versatility, excellent readability, and sustained accuracy make this stainless steel design a gauge leader. It can be stem, surface, or flush mounted.

Sustained accuracy and excellent readability are especially important to users of the OMEGA™ general service gauge line. Meeting the requirements of many industrial applications, general service gauges can be used on steam boilers or other pressurized vessels; on pumps and compressors; on many types of industrial machinery; in the chemical, petrochemical, and allied process industries; in power plants; and in pulp and paper mills.

The pressure gauge actuation system in the OMEGA general service gauge line is the standard 316 SS Bourdon tube system, which is engineered to precise tolerances for repeatability and consistent response to pressure fluctuations.

SPECIFICATIONS
Max. Operating Temp.: 66°C (150°F)
Case: Polished Stainless Steel
Window: Polycarbonate Plastic with Neoprene Sealing Gasket
Bourdon Tube: 316 Stainless Steel
Connection: Back or lower, ¼ NPT, 316SS
Dial Size: 2½ or 3½ in
Mounting: Stem, Flange or ‘U’ Bracket
Accuracy: 1% full scale

Examples of pricing for popular models is referenced in the ‘To Order’ box.

Pressure Type	Gauge, Vacuum, Compound Gauge
Pressure Range Units	psi, inHg
Pressure Range Min	0, -15
Pressure Range Max	100, 1,000, 10,000, 200, 2,000, 30, 300, 3,000, -30, 15, 150, 60, 400, 5,000, 600, 6,000, 7,500, 800, 1,500, 160
Accuracy Class	> 0.25%, Good
Dial Size	2.5", 3.5"
Additional Features	Bottom mounting, Rear Connection, Rear Connection, Silicone Oil Fill, Gauge, Bottom mounting, Silicone Oil Fill
Pressure Port Type	NPT Male
Pressure Port Size	1/4"
Accuracy Value	±1%
