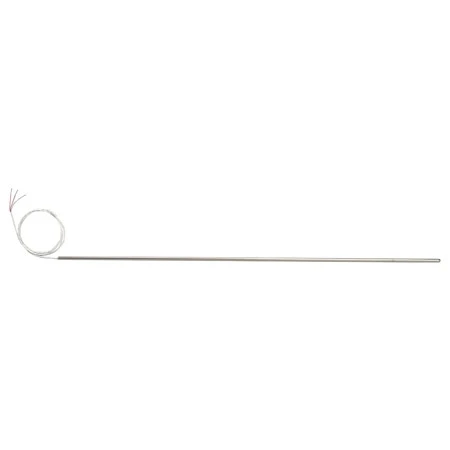

Cut To Length RTD Probes For Field Adaptation

Original price was: $119.83.Current price is: $83.88.

Probe Is Supplied 24′ Long and Designed To Be Cut-To-Length as Needed Using a Simple Tube Cutter.
Great For Use As Replacement Sensors, Can Be Combined With a Wide Variety Of Spring Loaded Fittings, Compression Fittings, Connection Heads, Thermowells, Connectors or Other Accessories to Fit a Wide Variety of Applications.
Contains a Precision pt100 Ohm DIN Platinum Thin Film Element in Either Class A or Class B Accuracies.
Temperature Range: -50 to 260ºC

Process Temperature Max

Process Temperature Range

Accuracy

Nominal Resistance

Number Of Wires

Probe Diameter

Cable Insulation

Cable Length

Clear

SKU: PRCTL-2-100-A-1/4-24-40-GG Categories: Probes with Lead Wires, Temperature Probes Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

This pt100 RTD sensor probe is designed to provide the ultimate in adaptability. Its 24″ length can be reduced in the field by cutting off the required tube length using a standard tube cutter. Combining the PRCTL sensor with Omega’s wide variety of fittings and accessories can customize this sensor on the spot for a wide variety of RTD replacement probe or OEM RTD sensor probe applications. This sensor is available in both Class A and Class B accuracies, in 3 wire standard (4-wire optional) in 1/4″ diameter to fit many thermowells, or in 3/16″, 6mm and 4.5mm diameters.

Process Temperature Max	500, 260
Process Temperature Range	-50 to 500°C (-58 to 932°F), -50 to 260°C (-58 to 500°F)
Accuracy	Class A per IEC60751, Class B per IEC60751
Nominal Resistance	100 Ω, 1000 Ω
Number Of Wires	3, 4
Probe Diameter	0.250 in, 0.187 in
Cable Insulation	Fiberglass, PFA, PFA with Stainless Steel Overbraid
Cable Length	40 in, 120 in, 240 in
Category	RTD
Process Temperature Unit	°C
Process Temperature Min	-50
Sensor Application	Immersion Probe – Cut to Length
Sheath Material	316 Stainless Steel
Probe Length	24 in
Wire Gauge	26 AWG
Termination Connection Type	Stripped Leads
