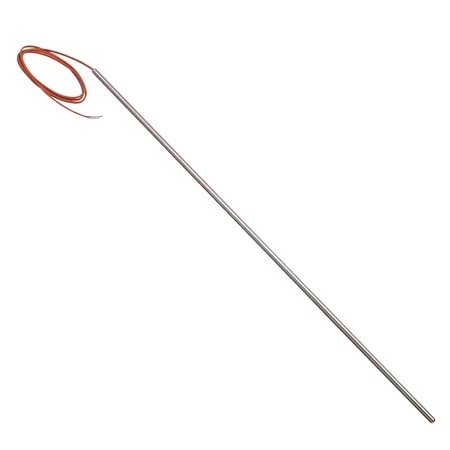

Cut To Length Thermocouple Probes For Field Adaptation

Original price was: $78.98.Current price is: $55.29.

Field Cutable to the Length Needed Using a Tubing Cutter [76 mm (3′) Length Minimum]
Available in All Base Metal Thermocouple Calibrations (Types J, K, T, E and N)
6 and 4.5 mm (1/4 and 3/16′) Diameters Standard
PFA and Two Fiberglass Insulated Cable Options Available

Thermocouple Type

Additional Feature

Process Temperature Max

Termination Connection Type

Cable Length

Cable Insulation

Probe Diameter

Junction Type

Process Temperature Range

Clear

SKU: TCCTL-E-14U-24-40-TT Categories: Probes with Lead Wires, Temperature Probes Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

The Model TCCTL “Cut-To-Length” thermocouples can be used for a wide variety of applications including:

For sudden or temporary measurements

Emergency replacements for existing thermocouples

The 1/4” and 6mm diameter thermocouples can be used in standard thermowells

With compression fittings and other accessories

These thermocouples can be customized to the needed length (75mm or 3” minimum) using a standard tube cutter, being careful not to cut into the extension wire insulation. Adding compression or spring loading fittings allows the thermocouple to be adapted to a wide variety of immersion type applications.

Thermocouple Type	E, J, K, N, T
Category	Thermocouple
Wire Gauge	24 AWG
Probe Length	24 in
Sheath Material	304 Stainless Steel
Sensor Application	Immersion Probe
Process Temperature Min	0
Process Temperature Unit	°C
Additional Feature	none, Dual Elements
Process Temperature Max	260, 482, 540, 200
Termination Connection Type	Stripped Leads, Miniature Connector
Cable Length	40 in, 60 in
Cable Insulation	PFA, Fiberglass, High Temprature Glass Braid
Probe Diameter	0.250 in, 0.187 in
Junction Type	Ungrounded, Grounded
Process Temperature Range	0 to 260°C (32 to 500°F), 0 to 482°C (32 to 900°F), 0 to 540°C (32 to 1000°F), 0 to 200°C (32 to 392°F)
Color Code Standard	ANSI (Standard)
