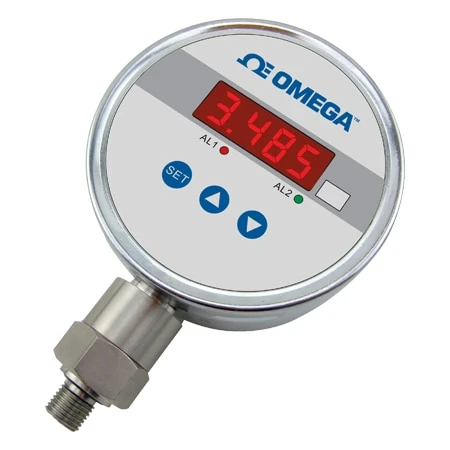

DC Powered, Digital Pressure Gauge With Output And Alarms

Original price was: $372.73.Current price is: $99.99.

4-Digit High Resolution LED Digital Display
All Stainless-Steel Construction
Gage, Absolute, Compound, and Vacuum Ranges Available
0.25% FS Terminal Point Accuracy

Pressure Range Units

Pressure Range Min

Pressure Range Max

Pressure Range

Pressure Type

Accuracy Value

Accuracy Class

Electrical Output

Output Signal

Clear

SKU: DPG104S-100G Categories: Digital Pressure Gauges, Pressure Gauges, Pressure Measurement Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

Integrated digital pressure gauge with display and control used to monitor hydraulic fluids. It monitors the pressure via the resistance measured on an isolation membrane. The output signal is amplified by a high-precision, low temperature drift amplifier. The signal is then fed into a high accuracy A/D converter for the microprocessor to process and then show on the LED display.

This flexible, simple to operate digital pressure gauge is safe, reliable, and easy to maintain. The DPG104 is widely used in hydro-power, water, petroleum, chemical, mechanical, hydraulic, and other industries.

Specifications
Display Units: Gauge can be factory scaled to any engineering unit such as psi, kPa, bar, mbar, inHg, inH₂O, mmHg, ftH₂O, torr, kg/cm³
Measuring Range: -0.1 to 35 MPa (-14.50 to 5000 psi)
Display Type: 4-digit LED
Accuracy: 0.25% FS
Power: 13 to 30 Vdc
Stability: <0.1% FS per year
Response Time: <30 ms
Case Protection: IP40
Operating Temperature: -30 to 80ºC (-22 to 176ºF)
Operating Humidity: <90%
Media Temperature Limits: -40 to 150ºC (-40 to 302ºF) [equip with cooling element accessory if media temperature is greater than 80ºC (176ºF)] Overpressure Limits: 3x rated pressure below 60 psi; 2x rated pressure from 100 psi to 1000 psi; 1.5 x rated pressure over 1000 psi
Process Connection: ¼” NPT, others consult Omega
Wetted Parts: 316 SS threads, NBR O-ring
Storage Temperature: -20 to 70ºC (-4 to 160ºF), less than 80% relative humidity

Pressure Range Units	psi, inHg
Pressure Range Min	0, -5, -15
Pressure Range Max	100, 5, 15, 30, 60, 1000, 200, 2000, 300, 3000, -30, 500, 5000
Pressure Range	0 to 100 psi, -5 to 5 psi, 0 to 5 psi, 0 to 15 psi, -15 to 15 psi, 0 to 30 psi, 0 to 60 psi, 0 to 1,000 psi, 0 to 200 psi, 0 to 2,000 psi, 0 to 300 psi, 0 to 3,000 psi, 0 to 30 inHg, 0 to 500 psi, 0 to 5,000 psi, -15 to 100 psi
Pressure Type	Gauge, Compound Gauge, Absolute, Vacuum
Accuracy Value	±0.25%, ±0.5%
Accuracy Class	0.1% to 0.25%, > 0.25%
Electrical Output	4 to 20 mA, Not Applicable
Output Signal	Current, Not Applicable
Pressure Port Type	NPT Male
Pressure Port Size	1/4"
Power Source	DC Powered
Number of Digits	4
Alarm Types (DC/AC)	SPDT 3 A
