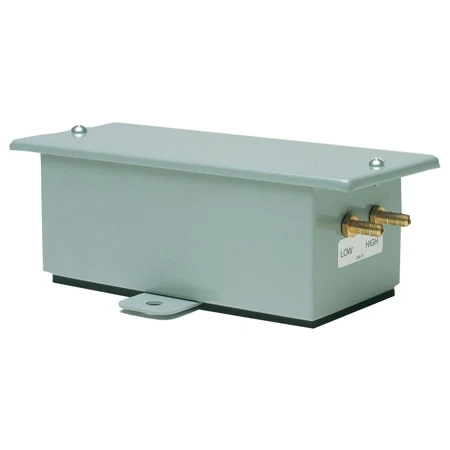

Differential Pressure Transmitters With 6 Field Selectable Ranges

Original price was: $275.05.Current price is: $99.99.

Add your content…Up to 6 field selectable ranges in a single unit
Up to 10 PSID overpressure without zero shift
Short circuit and reverse polarity protected
Rugged NEMA-4 (IP-65) enclosure with external mounting bracket

Pressure Range

Output Signal

Electrical output

Additional Features

Clear

SKU: PX274-30DI Categories: Pressure Measurement, Pressure Transducers Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

The PX274 series have a rugged, seamless, NEMA 4 enclosure and 6 field selectable ranges with a 4-20 mA, 0-5 or 0-10 volt output. Available in ranges from 0-0.1 to 0-30 in H2O.

The PX274 is a rugged differential pressure transmitter that offers up to 6 field-selectable ranges in one unit. It incorporates a rugged NEMA 4 (IP65) dust-proof and splashproof enclosure with an external mounting bracket.

Pressure Range	0 to 30 inH2O, 0 to 1 inH2O, 0 to 0.1 inH2O, 0 to 5 inH2O
Output Signal	Current, Voltage
Electrical output	4 to 20 mA, Selectable
Additional Features	Rangable, N/A
Pressure Type	Differential
Accuracy Class	> 0.25%
Accuracy Value(compensated range)	±1%
Pressure Port Size	3/16"
Pressure Port Type	Barbed Fitting
Connection/Termination	Terminal Block
Operating Temperature Range	-18 to 80 °C (0 to 176 °F)
