Digital Pressure Gauge With Measurement Memory

Original price was: $400.00.Current price is: $96.99.

±0.25% Accuracy
316 SS Wetted Parts
Selectable Engineering Units
Selectable Auto Shutoff Times

Pressure Range Min

Pressure Range Max

Pressure Range

Pressure Type

Additional Features

Clear

SKU: DPG2001B-15A Categories: Digital Pressure Gauges, Pressure Gauges, Pressure Measurement Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

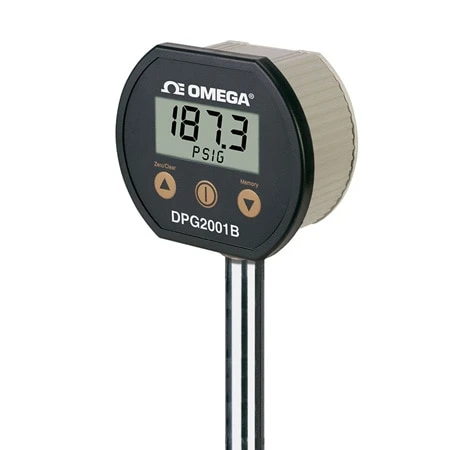

OMEGA’s DPG2001B Series digital pressure gauges are high accuracy battery powered gauges that include many premium functions at no extra cost. Options are available for a NEMA 4X case and backlighting. Each unit has a dual display (digital and alphanumeric), memory for 6 readings, front panel auto zero, auto shutoff from 1 minute to 8 hours, and up to 15 selectable engineering units depending upon the range.

SPECIFICATIONS
Power: 2 AA batteries (included)
Battery Life: Approx. 2000 hrs or with ‘-BL’ option: 150 to 1500 hours
(depending upon use of backlight)
Accuracy: ±0.25% FS ±1 digit (includes linearity, hysteresis and repeatability)
Display: 4 digit, 0.5′ H and 5 character 0.25′ H alphanumeric
Auto Shutoff: 1 minute to 8 hours, or front button ON/OFF. Factory default is 5 minutes
Overpressure:2X pressure range except
0 to 3000 psi Range: 5000 psi
0 to 5000 psi Range: 7500 psi
Overpressure Display: i—- or i -.-.-.-
Burst Pressure: 4X pressure range or 10,000 psi, whichever is less
Storage Temperature: -40 to 95°C (-40 to 203°F)
Operating Temperature: -20 to 85°C (-4 to 185°F)
Compensated Temperature: 0 to 70°C (32 to 158°F)
Material: Extruded aluminum case, epoxy powder coated, ABS/polycarbonate bezel, front and rear gaskets, polycarbonate label
NEMA 4X: ABS/Polycarbonate NEMA 4X case, rear gasket, polycarboinate label
Pressure Connection: 1/4 NPT male fitting, 316L SS
Media Compatibility: Liquids and gases compatible with 316L SS
Dimensions: 86 L x 73 H x 42 mm D (3.38 x 2.88 x 1.65′)
Weight: 250 g (8.8 oz)
OPTIONS
Backlighting: Add suffix ‘-BL’ to standard battery powered model, add $30 to price
NEMA 4X Case: Change model number to DPG2004, add $20 to price

Pressure Range Min	0, -15
Pressure Range Max	15, 3, 5, 1000, 100, 200, 2000, 3000, 300, 30, 5000, 500, 60, -15
Pressure Range	0 to 15 psi, 0 to 3 psi, 0 to 5 psi, 0 to 1,000 psi, 0 to 100 psi, -15 to 100 psi, -15 to 15 psi, -15 to 200 psi, 0 to 2,000 psi, 0 to 200 psi, 0 to 3,000 psi, 0 to 300 psi, 0 to 30 psi, 0 to 5,000 psi, 0 to 500 psi, 0 to 60 psi
Pressure Type	Absolute, Gauge, Compound Gauge, Vacuum
Additional Features	Not Applicable, Nema 4X Enclosure
Pressure Range Units	psi
Pressure Port Type	NPT Male
Pressure Port Size	1/4"
Power Source	Battery Powered
Accuracy Value	±0.25%
Accuracy Class	0.1% to 0.25%
Number of Digits	4
