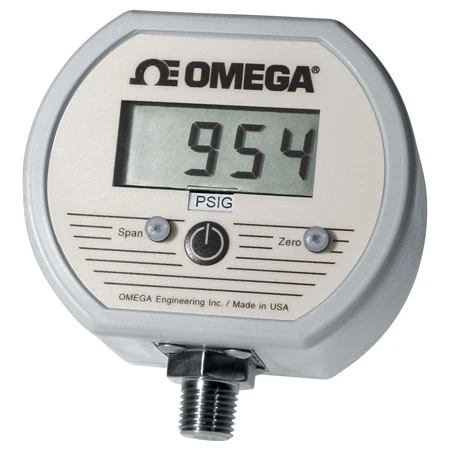

Digital Pressure Gauge With Output, NEMA 4X Case

Original price was: $400.00.Current price is: $95.99.

NEMA-4X Enclosure
±0.25% Test Gauge Accuracy
316 Stainless Steel Wetted Parts
Easy-to-Read 3½ Digit LCD Display

Pressure Range Min

Pressure Range Max

Pressure Range

Pressure Type

Pressure Port Type

Power Source

Electrical Output

Output Signal

Additional Features

Clear

SKU: DPG1100B-30V/100G Categories: Digital Pressure Gauges, Pressure Gauges, Pressure Measurement Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

The DPG1100 series is a versatile industrial pressure/vacuum gauge in a NEMA-4X housing suitable for indoor or outdoor use. All DPG1100 models feature a large (1/2’/13 mm H) LCD digital display with optional backlighting available. A 1/4 -18 NPT 316 stainless steel fitting is standard for the pressure connection. Media compatibility includes any liquids or gases compatible with 316 stainless steel. The DPG1100 features a wide operating temperature range of -20 to 85°C (-4 to 185°F). Many different standard pressure/vacuum ranges (in a choice of engineering units) with both gauge and absolute references are available. The DPG1100 series also features ±0.25% accuracy, 2X overpressure and 4X burst specifications.

The DPG1100 is also available with an extruded aluminum enclosure. Please see the DPG1000 for complete details, or contact our Pressure department for more information.

The DPG1000 is also available with ±0.10% Accuracy. Please see the DPG1001 for complete details, or contact our Pressure department for more information.

SPECIFICATIONS
Power: (2) AA batteries included, provide up to 2500 hr life typical, LOBAT indication
Auto Shutoff: 5 minutes
Display Type/Size: LCD, 1/2′ (13 mm) digit height
Sample Rate: 3 readings per second
Controls & Location: Display zero/span, non-interactive, ±15% range; front-accessible, multiturn potentiometers
Accuracy: ±0.25% FS +1 least significant digit (includes linearity, hysteresis, repeatability)
Storage Temperature: -55 to 95°C (-67 to 203°F)
Operating Temperature: -20 to 85°C -4 to 185°F
Compensated Temperature: 0 to 70°C (32 to 158°F)
Temperature Stability: 1% FS (2% for 5 psi or less) typical for offset and span from 0 to 70°C (32 to 158°F)
Weight: 9 oz (255 g) (approx.)
Case: NEMA-4X rated
Pressure Port: 1/4 -18 NPT male
Wetted Parts: 316 stainless steel
Proof Pressure: 2x rated pressure
Burst Pressure: 4x rated pressure

For pressure scales other than psi please consult Pressure Engineering Department for availability and pricing.

Pressure Range Min	-15, 0
Pressure Range Max	100, 5, 15, 1000, 300, 30, 500, 60
Pressure Range	-15 to 100 psi, 0 to 5 psi, 0 to 100 psi, 0 to 15 psi, 0 to 1,000 psi, 0 to 300 psi, 0 to 30 psi, 0 to 500 psi, 0 to 60 psi
Pressure Type	Gauge, Absolute
Pressure Port Type	NPT Male, NPT Female
Power Source	Battery Powered, AC/DC Powered, Loop Powered
Electrical Output	Not Applicable, 4 to 20 mA
Output Signal	Not Applicable, Current
Additional Features	Nema 4X Enclosure, Nema 4X Enclosure NIST Calibrations
Pressure Range Units	psi
Pressure Port Size	1/4"
Accuracy Value	±0.25%
Accuracy Class	0.1% to 0.25%
Number of Digits	3.5
