SPECIFICATIONS
Accuracy: ±0.5% BFSL (includes non-linearity, hysteresis, repeatability)
Pressure Range:
    DPG110: -14 to 100 psi
    DPG120: -14 to 1000 psi
Units of Measure: psi, bar, kg/cm², atm
Stability (1 Year): ±0.25% FS typical
Overrange Protection: 2x rated pressure
Burst Pressure: 5x or 20,000 psi, whichever is less
Pressure Cycles: >100 million cycles
Operating Temperature Range: 0 to 55°C (32 to 130°F)
Compensated Temperature Range: 0 to 55°C (32 to 130°F)
Storage Temperature Range: -40 to 65°C (-40 to 150°F)
Temperature Compensation:
    Zero: <±1.5% FS
    Span: <±1.5% FS
Pressure Sensor Connection: 1/8 FNPT
Update Rate: 3 samples per second
Wetted Parts: Stainless steel
Power: 9 V alkaline battery (included)
Auto Shut-Off: 1 hr
Battery Life: 100 hr continuous operation
Dimensions: 101 H x 63 W x 44 mm D (4 x 2.5 x 1.75″)
Weight: 0.16 kg (0.36 lbs)

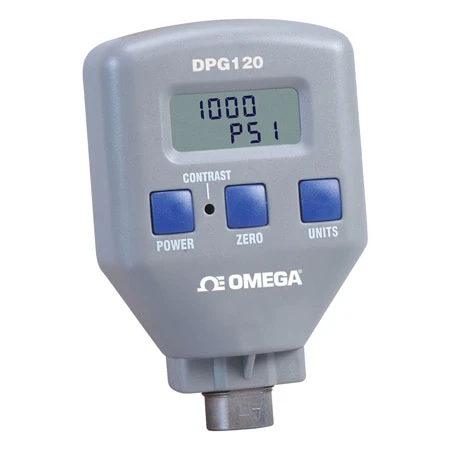

Digital Pressure Gauge With Rugged Housing
$335.32 Original price was: $335.32.$99.99Current price is: $99.99.
- High Accuracy
- Selectable Units of Measure
- Selectable Relative or Sealed Measurement Reference
- Easy to Use
SKU: DPG110 Categories: Digital Pressure Gauges, Pressure Gauges, Pressure Measurement Tag: Omega Engineering
- 100% Quality Satisfaction
- Uncompromising quality, every time.
- Quality You Can Trust
- Your questions, our prompt answers.

| Pressure Range Max | 100, 1000 |
|---|---|
| Pressure Range | -15 to 100 psi, -15 to 1,000 psi |
| Pressure Range Units | psi |
| Pressure Range Min | -15 |
| Pressure Type | Gauge |
| Pressure Port Type | NPT Female |
| Pressure Port Size | 1/8" |
| Power Source | Battery Powered |
| Accuracy Value | ±0.5% |
| Accuracy Class | > 0.25% |
| Number of Digits | 3.5 |
| Additional Features | Not Applicable |
