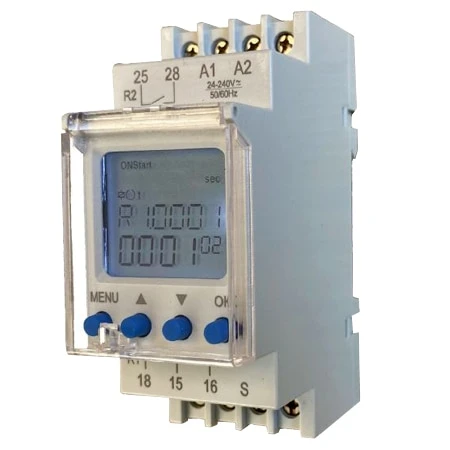

DIN Mount Digital Timer With 2 Relay Output

The Omega PTC-16-A digital timer is a 4 digit multifunction, multi-time range timer suitable for controlling the operation of equipment, machinery, systems or processes in a wide range of industrial applications. This dual digital timer has two relay outputs which can be configured as two independent timed outputs. A choice of 24 timing function modes can be selected for each of the outputs, together with a time range from 1 second to 9999 minutes. The output contacts are fully isolated from the supply voltage. These timers are housed in a compact DIN rail mounting enclosure measuring only 36mm in width and are powered from a wide range of 24 to 240Vac/dc.

Specifications

SPECIFICATIONS
Accuracy	±3sec/24hours
Power Supply Voltage	24 to 240Vac
Burden	<3VA
Frequency	50/60Hz
Time Ranges	0 to 9999sec 0 to 9999min
Relay Output	Single pole changeover contact and single pole N/O contact
Contact Rating	OP1 8A at 250Vac/30Vdc (resistive) OP2 8A at 250Vac/30Vdc (resistive)
Electrical Contact Life	100,000 operations
Reset Time	100ms approx.

MECHANICAL
Enclosure	Panel mounting to DIN 43700, Self extinguishing plastic case Plug in connection terminals
Enclosure Code	Case IP20
Weight	140g

ENVIRONMENTAL
Operating Temperature	-5°C to 45°C (23°F to 113°F)
Storage Temperature	-10°C to 55°C (14°F to 131°F)

GENERAL
Markings	CE marked (meets EN61010-1:2010 low voltage and EN61326-1:2013 EMC directives)
