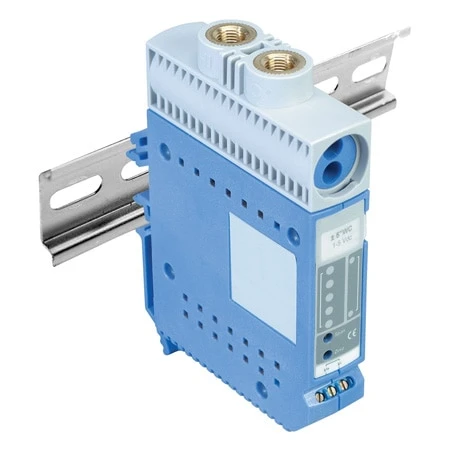

DIN Rail Mountable, Differential Pressure Transmitters

Original price was: $330.00.Current price is: $99.99.

Compact Space-Saving DIN Rail Mountable Design
Low Differential Pressure Ranges
On-Board Voltage Regulation Allows Use of Low-Cost, Unregulated Power Supply

Pressure Range

Output Signal

Electrical output

Clear

SKU: PX663-10D5V Categories: Pressure Measurement, Pressure Transducers Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

SPECIFICATIONS
Excitation: 12 to 36 Vdc
Output: 1 to 5 Vdc
Accuracy: ±0.5% FS
Non-Linearity: ±0.4% FS
Hysteresis: ±0.02% FS
Non-Repeatability: ±0.05%
Supply Current: <10 mA
Warm-Up Time: 5 sec max to meet standard specifications from initial power-up
Stability: ±0.5% FS / year
Response Time: 250 ms
Storage Temp.: -40 to 82°C (-40 to 180°F)
Operating temp.: -28 to 82°C (-20 to 180°F) (10 to 95% RH non-condensing)
Compensated Temp.: 2 to 57°C (35 to 135°F)
Zero Temp. Effect: ±0.036% FS/°C (±0.02% FS/°F)
Span Temp. Effect: ±0.036% FS/°C (±0.02% FS/°F)
EMC: CE compliant to EN61326, 1997 ANNEX A harmonized heavy industrial transmitter specification
Proof Pressure: 15 psid
Burst Pressure: 25 psid Max Static Pressure: 25 psi
Mounting Position Effect: 0.1% FS(<0.5′ WC: 0.25% FS)
Note: Mounting position effect easily corrected with zero potentiometer
Zero and Span Potentiometers: Front accessible, non-interactive
Zero: ±5% FS
Span: ±3% FS
Pressure Connections: 1/8 NPT female
Weight: 127 grams (4.5 oz)
Enclosure: Glass-filled polycarbonate (UL94 -V-1)
Pressure Media: Clean, dry and non-corrosive gas NOT FOR USE WITH LIQUIDS
Mounting: DIN rail types EN50022, 35 and 45

Models are also available with 4 to 20 mA output. Please see the PX665 for complete details, or contact our Pressure department for more information.

Pressure Range	0 to 10 inH2O, -0.05 to 0.05 inH2O, 0 to 0.1 inH2O, 0 to 0.5 inH2O, 0 to 15 inH2O, 0 to 1.5 inH2O, -1 to 1 inH2O, 0 to 1 inH2O, -2 to 2 inH2O, 0 to 3 inH2O, 0 to 50 inH2O, -5 to 5 inH2O, 0 to 5 inH2O, -0.1 to 0.1 inH2O, -0.25 to 0.25 inH2O, 0 to 0.25 inH2O, -0.5 to 0.5 inH2O, -10 to 10 inH2O, 0 to 20 inH2O, -25 to 25 inH2O, -2.5 to 2.5 inH2O, 0 to 25 inH2O, 0 to 2 inH2O
Output Signal	Voltage, Current
Electrical output	1 to 5 Vdc, 4 to 20 mA
Pressure Type	Differential
Accuracy Class	> 0.25%
Accuracy Value(compensated range)	±0.5%
Pressure Port Size	1/8"
Pressure Port Type	NPT Female
Connection/Termination	Terminal Block
Operating Temperature Range	-29 to 82 °C (-20 to 180 °F)
