DIN Rail Mounted Multi-Functional Digital Timer

Original price was: $110.91.Current price is: $77.64.

Multifunctional Timer (8 or 18 Functions)
Universal Voltage 24 to 265 Vac/Vdc
Wide Time Range: 0.1 Seconds to 999 Hours
3 Digit LCD Display for Preset Time and Run Time

Alarm Output

Additonal Features

Clear

SKU: AU-AMT12-S1 Categories: Control & Monitoring, Meters, Timers Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

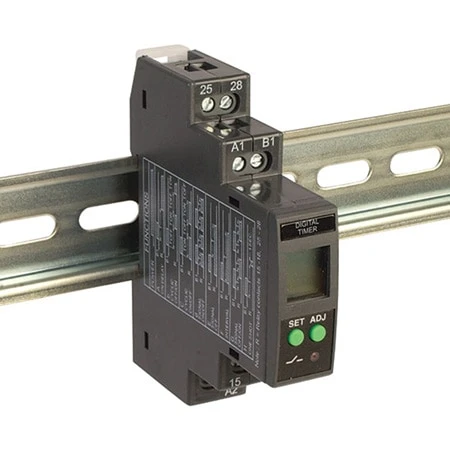

The AU-AMT Series of DIN rail mountable digital multi-timers includes four models featuring 8 or 18 timer functions to offer highest flexibility in controlling operations. The time range is adjustable from 0.1 second to 999 hours. An LCD display shows current run time information.

Specifications
Supply Voltage: 24 to 265 Vac/Vdc (50, 60Hz)
Power Consumption: 10 VA maximum
Timing Range: 0.1 second to 999 hours
Reset Time: 200 ms maximum
Repeat Accuracy: ±0.5%
Output Contact Rating: 8A @ 240 Vac/24 Vdc (resistive)
Electrical Life: 10,000 switching cycles
Mechanical Life: 2,000,000 switching cycles
Operating Temperature: -10 to 55°C (14 to 131°F)
Storage Temperature: -20 to 65°C (-4 to 149°F)
Weight: 85 g (0.14 lb)
Protection Enclosure: IP30
Protection Terminals: IP20
Torque: 0.40 Nm (3.5 lb/inch)
Terminal Wire Size: 0.3 to 2.5 mm² (22-14 AWG)

Alarm Output	1 Relay, 2 Relays
Additonal Features	18 Timer Functions, 8 Timer Functions
Measurement Type	Time
Input Type	None
Number of Inputs	None
Form Factor	DIN Rail
Display Type	3 Digit Single Display
Max Sampling Rate	1 Hz
Retransmission Output	None
Supply Voltage Type	AC/DC
