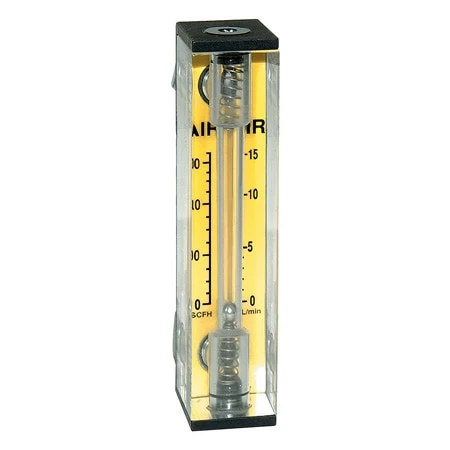

Direct Read Acrylic Variable Area Flow Meter Kits
Original price was: $96.38.$67.47Current price is: $67.47.
- Easy-to-Read Dual English and Metric Scales
- Interchangeable Scales for 6 Common Gases and Water
- Meters are Offered With or Without Built-In Needle Valves
- Economical and Compact
- 100% Quality Satisfaction
- Uncompromising quality, every time.
- Quality You Can Trust
- Your questions, our prompt answers.
The FL-2500 Series direct read Variable Area Flow Meter kits offer versatility at a low cost. Each kit includes seven interchangeable direct read scales for air, water, Argon, CO2, Helium, Nitrogen and Oxygen. These economical kits are ideal for laboratories, schools or processes that use multiple gases.
SPECIFICATIONS
Accuracy: ±5% of full scale reading
Maximum Temperature: 65°C (150°F)
Maximum Pressure: 6.9 bars (100 psig)
Meter Block: Clear machined acrylic
Float Materials: Black glass, stainless steel, tungsten carbide
O-Ring Seals: FKM with stainless fittings, Buna with brass fittings
Fittings: 1/8 NPT female connections, built-in needle valves and seal plugs, brass or stainless (model dependent)
Note: NIST calibration is not available on direct read meters.
| Model No. Brass Fittings | Model No. SS Fittings | Air SLM (SCFH) | Water SCCM (GPH) | Argon SLM (SCFH) | CO2 SLM (SCFH) | Helium SLM (SCFH) | Nitrogen SLM (SCFH) | Oxygen SLM (SCFH) | Float |
|---|---|---|---|---|---|---|---|---|---|
| FL-2501 | FL-2511 | 1.4 (2.8) | 20.0(0.3)) | 1.1 (2.25) | 1.1 (2.25) | 2.0 (4.0) | 1.3 (2.75) | 1.2 (2.5) | Glass |
| FL-2502 | FL-2512 | 2.75 (5.5) | 70 (1.1) | 2.2 (5.0) | 2.2 (5.0) | 5.5 (11.0) | 2.75 (5.5) | 2.5 (5.0) | Stainless |
| FL-2503 | FL-2513 | 3.5 (7.0) | 100 (1.5) | 3.0 (6.5) | 3.0 (6.5) | 8.0 (17) | 3.5 (7.5) | 3.5 (7.0) | Carboloy |
| FL-2504 | FL-2514 | 8.5 (18) | 175 (2.75) | 7.0 (15) | 7.0 (15) | 18 (40) | 8.0 (16) | 8.0 (16) | Glass |
| FL-2505 | FL-2515 | 16 (32.5) | 450 (6.5) | 13 (26) | 12 (25) | 35 (70) | 16 (32.5) | 15 (30) | stainless |
| FL-2506 | FL-2516 | 22 (45) | 700 (11) | 18 (37.5) | 18 (37.5) | 55 (110) | 22 (45) | 20 (42.5) | Carboloy |
| FL-2507 | FL-2517 | 50 (100) | 1400 (22) | 40 (80) | 35(80) | 110(250) | 45(100) | 45 (90) | Stainless |
| Gas Flow Range | 2.2 to 22 SLM, 0.14 to 1.4 SLM, 0.275 to 2.75 SLM, 0.35 to 3.5 SLM, 0.85 to 8.5 SLM, 1.6 to 16 SLM, 5 to 50 SLM |
|---|---|
| Liquid Flow Range | 70 to 700 SCCM, 2 to 20 SCCM, 7 to 70 SCCM, 10 to 100 SCCM, 17.5 to 175 SCCM, 45 to 450 SCCM, 140 to 1,400 SCCM |
| Wetted Materials | SS, Acrylic, FKM, Carboloy, Brass, Acrylic, Buna, Glass, Brass, Acrylic, Buna, SS, Brass, Acrylic, Buna, Carboloy, SS, Acrylic, FKM, Glass, SS, Acrylic, FKM |
| Valve Included | No, Yes |
| Category | Meter |
| Media Type | Air, Water |
| Accuracy | ±5% |
| Process Connection Type | NPT Female |
| Process Connection Size | 1/8" |
| Max Operating Pressure | 100 psi |
| Max Process Temperature | 65 °C (150 °F) |
| Scale | Direct Read |
| Features | Panel Mount |
