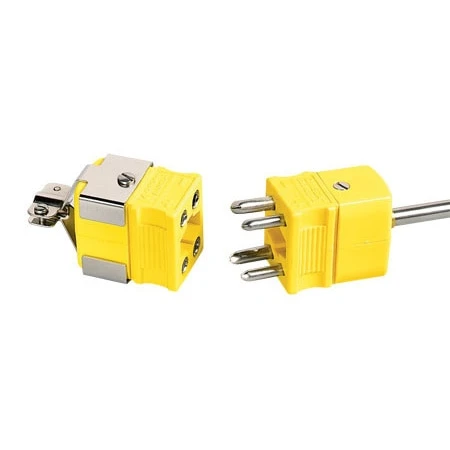

Dual Element Thermocouple Probes With Standard Size Connectors

Original price was: $120.23.Current price is: $84.16.

Two Sensor Readings Allows Two Readings of a Single Point
Continuous Monitor and Control & Built-in Backup
Made from Special Limits of Error Material
Glass Filled Nylon Connector Rated to 180°C (356°F)

Thermocouple Type

Process Temperature Range

Sensor Application

Sheath Material

Junction Type

Probe Diameter

Probe Length

Connector Color Code Standard

Clear

SKU: ICIN-116G-18-DUAL Categories: Probes with Integral Connectors, Temperature Probes Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

OMEGA™ dual-element thermocouple assemblies are manufactured using 4-conductor OMEGACLAD™ wire, and feature rugged DTC connector terminations. Either 304 SS or Inconel sheaths are available in sizes from 1/16 to 1/4″ O.D., with either grounded, ungrounded or exposed junctions. Standard length is 12″, with other lengths available.

Dual Element Thermocouple Probes With Standard Size Connectors -Omega Engineering Sales Store ICIN DUAL

Thermocouple Alloy	Sheath Dia. mm (in.)	Grounded Junction	Ungrounded Junction	Exposed Junction
J IRON-CONSTANTAN Inconel Sheath	1.5 (1/16″) 3.0 (1/8″) 4.5 (3/16″) 6.0 (1/4″)	ICIN-116G-12-DUAL ICIN-18G-12-DUAL ICIN-316G-12-DUAL ICIN-14G-12-DUAL	ICIN-116U-12-DUAL ICIN-18U-12-DUAL ICIN-316U-12-DUAL ICIN-14U-12-DUAL	ICIN-116E-12-DUAL ICIN-18E-12-DUAL ICIN-316E-12-DUAL ICIN-14E-12-DUAL
J IRON-CONSTANTAN 304 SS Sheath	1.5 (1/16″) 3.0 (1/8″) 4.5 (3/16″) 6.0 (1/4″)	ICSS-116G-12-DUAL ICSS-18G-12-DUAL ICSS-316G-12-DUAL ICSS-14G-12-DUAL	ICSS-116U-12-DUAL ICSS-18U-12-DUAL ICSS-316U-12-DUAL ICSS-14U-12-DUAL	ICSS-116E-12-DUAL ICSS-18E-12-DUAL ICSS-316E-12-DUAL ICSS-14E-12-DUAL
K CHROMEGA™-ALOMEGA™ Inconel Sheath	1.5 (1/16″) 3.0 (1/8″) 4.5 (3/16″) 6.0 (1/4″)	CAIN-116G-12-DUAL CAIN-18G-12-DUAL CAIN-316G-12-DUAL CAIN-14G-12-DUAL	CAIN-116U-12-DUAL CAIN-18U-12-DUAL CAIN-316U-12-DUAL CAIN-14U-12-DUAL	CAIN-116E-12-DUAL CAIN-18E-12-DUAL CAIN-316E-12-DUAL CAIN-14E-12-DUAL
K CHROMEGA™-ALOMEGA™ 304 SS Sheath	1.5 (1/16″) 3.0 (1/8″) 4.5 (3/16″) 6.0 (1/4″)	CASS-116G-12-DUAL CASS-18G-12-DUAL CASS-316G-12-DUAL CASS-14G-12-DUAL	CASS-116U-12-DUAL CASS-18U-12-DUAL CASS-316U-12-DUAL CASS-14U-12-DUAL	CASS-116E-12-DUAL CASS-18E-12-DUAL CASS-316E-12-DUAL CASS-14E-12-DUAL
E CHROMEGA™-CONSTANTAN Inconel Sheath	1.5 (1/16″) 3.0 (1/8″) 4.5 (3/16″) 6.0 (1/4″)	CXIN-116G-12-DUAL CXIN-18G-12-DUAL CXIN-316G-12-DUAL CXIN-14G-12-DUAL	CXIN-116U-12-DUAL CXIN-18U-12-DUAL CXIN-316U-12-DUAL CXIN-14U-12-DUAL	CXIN-116E-12-DUAL CXIN-18E-12-DUAL CXIN-316E-12-DUAL CXIN-14E-12-DUAL
E CHROMEGA™-CONSTANTAN 304 SS Sheath	1.5 (1/16″) 3.0 (1/8″) 4.5 (3/16″) 6.0 (1/4″)	CXSS-116G-12-DUAL CXSS-18G-12-DUAL CXSS-316G-12-DUAL CXSS-14G-12-DUAL	CXSS-116U-12-DUAL CXSS-18U-12-DUAL CXSS-316U-12-DUAL CXSS-14U-12-DUAL	CXSS-116E-12-DUAL CXSS-18E-12-DUAL CXSS-316E-12-DUAL CXSS-14E-12-DUAL
T COPPER-CONSTANTAN Inconel Sheath	1.5 (1/16″) 3.0 (1/8″) 4.5 (3/16″) 6.0 (1/4″)	CPIN-116G-12-DUAL CPIN-18G-12-DUAL CPIN-316G-12-DUAL CPIN-14G-12-DUAL	CPIN-116U-12-DUAL CPIN-18U-12-DUAL CPIN-316U-12-DUAL CPIN-14U-12-DUAL	CPIN-116E-12-DUAL CPIN-18E-12-DUAL CPIN-316E-12-DUAL CPIN-14E-12-DUAL
T COPPER-CONSTANTAN 304 SS Sheath	1.5 (1/16″) 3.0 (1/8″) 4.5 (3/16″) 6.0 (1/4″)	CPSS-116G-12-DUAL CPSS-18G-12-DUAL CPSS-316G-12-DUAL CPSS-14G-12-DUAL	CPSS-116U-12-DUAL CPSS-18U-12-DUAL CPSS-316U-12-DUAL CPSS-14U-12-DUAL	CPSS-116E-12-DUAL CPSS-18E-12-DUAL CPSS-316E-12-DUAL CPSS-14E-12-DUAL

View the Thermocouple Accuracy and Color Code charts

Thermocouple Type	J, K, T, E, N
Process Temperature Range	0 to 440°C (32 to 825°F), 0 to 1150°C (32 to 2100°F), 0 to 920°C (32 to 1690°F), 0 to 1070°C (32 to 1960°F), 0 to 200°C (32 to 400°F), 0 to 1038°C (32 to 1900°F), 0 to 1204°C (32 to 2200°F), 0 to 260°C (32 to 500°F), 0 to 370°C (32 to 700°F), 0 to 315°C (32 to 600°F), 0 to 510°C (32 to 950°F), 0 to 820°C (32 to 1510°F), 0 to 650°C (32 to 1200°F), 0 to 730°C (32 to 1350°F), 0 to 720°C (32 to 1300°F), 0 to 520°C (32 to 970°F), 0 to 620°C (32 to 1150°F)
Sensor Application	Immersion Probe, Air Probe
Sheath Material	Inconel® 600, 310 Stainless Steel, 316 Stainless Steel, 304 Stainless Steel, PFA Coated, Super OMEGACLAD™ XL
Junction Type	Grounded, Ungrounded, Exposed
Probe Diameter	0.062 in, 0.187 in, 0.125 in, 0.250 in, 1.50 mm, 3.00 mm, 6.00 mm, 0.375 in
Probe Length	18 in, 19 in, 12 in, 6 in, 24 in, 36 in, 48 in, 60 in, 72 in, 8 in, 3 in, 4 in, 120 in, 300 mm, 100 mm, 150 mm, 200 mm, 3000 mm
Connector Color Code Standard	ANSI (Standard), IEC
Sensor Type	Thermocouple
Connector Style	Dual Standard Connector
