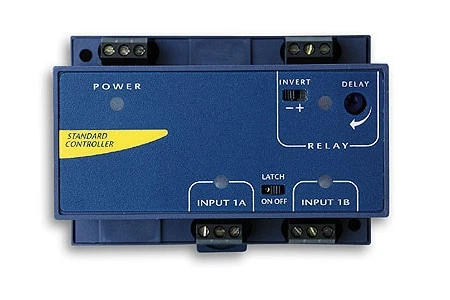

Dual Input Automatic Fill/Empty Relay Controller

Original price was: $318.00.Current price is: $95.99.

Latched 10 Amp SPDT Relay
Controls Pumps, Valves, and Actuators
Selectable Latch On or Off Relay
Designed for Panel Installation on EN 50 022 Standard 35 mm DIN Rail

SKU: LVCN-130 Categories: Control & Monitoring, Controllers, Level Controllers Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

The LVCN-130 dual sensor controller accepts two sensor inputs for automatic filling and emptying operations. The latched 10 amp relay provides the control interface with pumps and valves. The controller has a time delay feature dampening out relay chatter. Other features include selectable normally open or normally closed relay states and latch on or off relay conditions. The controller is designed for installation on EN 50 022 standard 35 mm DIN Rail or it can be panel mounted.

Mounting Type	35 mm DIN Rail or Panel
Wetted Materials	Polypropylene
Max Process Temperature	70 °C (158 °F)
Switch Type and Rating	10 A SPDT
Features	Switch Type Selectable, NO or NC, Dual Sensor
