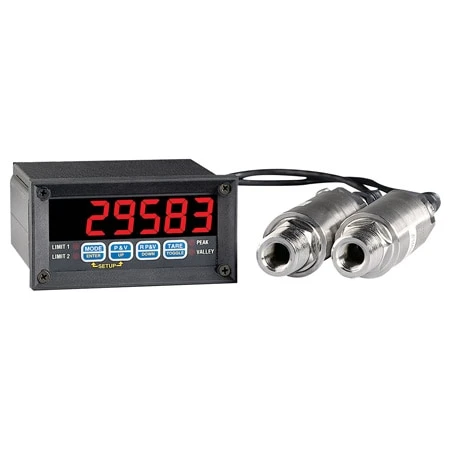

Dual Input Process Meters With Math Functions

Original price was: $375.00.Current price is: $96.99.

Dual Inputs with Programmable Math Functions
Process Voltage or Current Inputs
Programmable Ranges ± 200 mV to ± 200 V and 4-20 mA
Digital Tare (Zero) up to 50% of Span

Number of Output

Output Type

Supply Voltage Type

Supply Voltage

Communications Protocol

Clear

SKU: DP7800-230VAC Categories: Control & Monitoring, Meters, Process Meters Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

SPECIFICATIONS
Accuracy: ±0.01% of reading ±1 count of LSD
Range Programming: Solderless jumpers on rear of unit. Select 200 mV, ±2 V, ±20 V, ±200 V, and 4-20 mA
Conversion Rate: 3/second
Display: 5-digit, seven-segment LED 0.56″ (14.3 mm) high
Limit Outputs: Standard dual form “A” relay rated 0.25 A at 28 V
Analog Output (optional): 0-10 Vdc @ 2.5 mV resolution. 0 V and 10 V points are programmable via front panel switches. Maximum drive capability ±2 mA The 4 mA and 20 mA points are programmable via front panel switches. 4-20 mA output, maximum load 600 Ohms
CMV: 1400 V Peak (ac or dc) between analog output ground and ac power line ground
Serial Interface (optional): ASCII RS-232 or RS-485 compatible; format 1 start bit, 8 data bits, 1 stop bit and no parity bits Baud Rates: 9600, 4800, 2400, 1200, 600, 300, 150 and 75 programmable from the front panel
Operating Temperature: -20 to 60°C (-4 to 140°F)
Storage Temperature: -25 to 85°C (-12 to 184°F)
Relative Humidity: 0% to 90%, Non-condensing
Power: 115 Vac (+15% -10%) @ 50 mA (47 to 500 Hz) Optional: 230 Vac (+15% -10%) @ 25 mA (47 to 500 Hz) Optional: 9-18 or 18-36 Vdc
Dimensions: 1.97 H x 3.80 W x 4.0″ D (50 x 97 x 102 mm) (Rear Connectors add 0.5″ to depth)
Panel Cutout: 1 /8 DIN 45 H x 92 mm W (1.77 H x 3.58″ W)
Weight: 454 g (1 lb)

Examples of pricing for popular models is referenced in the “To Order” box. Use the “Part Number Builder” below to get pricing for all available models.

Number of Output	0, 1
Output Type	Not Applicable, Analog Output, 0 to 10 Vdc, 4 to 20 mA
Supply Voltage Type	AC, DC
Supply Voltage	230 Volts, 115 Volts, 18 to 36 Volts, 9 to 18 Volts
Communications Protocol	Not Applicable, Serial
Measure Type	Process
Input Type	MA, MV, 10V
Number of Inputs	2
DIN Size	1/8 DIN
Display Type	5 Digit Single Display
Max Sampling Rate	3 Hz
Accuracy Rating	Better
Other Features	Not Applicable
