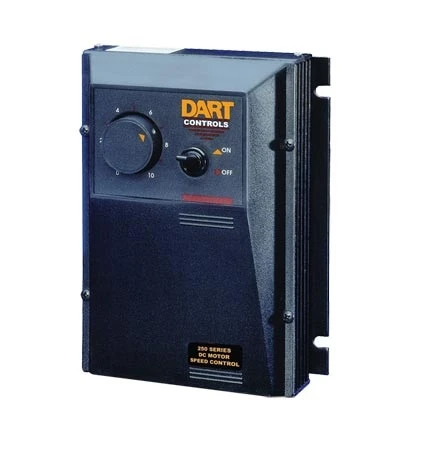

Dual Voltage SCR DC Motor Speed Control For Up To 2 H.P. Motors

Original price was: $323.00.Current price is: $95.99.

Dual Voltage – 120/240 Vac
Adjustable Horsepower Settings
NEMA 4/12 or 4X (IP66) Enclosure
Packaged Bridge Supply (Full Wave)

Features

Clear

SKU: OMDC-253G-200E Categories: Control & Monitoring, Motion and Position, Speed Controllers Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

OMDC-253G-200E used for speed control in Omega’s wire processing.

The OMDC-250 Series variable speed DC control offers superb flexibility, reliability, and value. A general purpose, economical control that is rated and tested to 2 horsepower, it provides the ultimate in standard features and versatility.

ADDITIONAL FEATURES

Adjustable IR compensation

Line voltage compensation

5 kΩ speed potentiometer

150% overload capacity

Transient voltage protection

Inhibit circuit permits start and stop without breaking AC lines

Shunt field supply provided SPECIFICATIONS
Temperature: -10 to 45°C (14 to 113°F)
AC Input Voltage: ±10% rated line voltage
Input Frequency: 50/60 Hz
Dimensions: 97 W x 140 H x 89 mm D (3.8 x 5.5 x 3.5′)
Weight: 284 g (10 oz)

NOTE: When using the -29 option (FWD-OFF-REV switch), care must be taken to stop the motor completely before switching direction. Damage to the drive can result from switching direction at speed.

=’disc’>

Features	NEMA 4/12 Enclosure, FWD-OFF-REV Manual Switch, NEMA 4/12 Enclosure, NEMA 4X Enclosure, 4 to 20 mA Isolated Signal Follower, NEMA 4X Enclosure, 0 to 250 Vdc Isolated Signal Follower, NEMA 4/12 Enclosure, 4 to 20 mA Isolated Signal Follower, NEMA 4/12 Enclosure
Max Horsepower	2 HP
Input Voltage	120 Vac/240 Vac
Output Voltage	0 to 90 Vdc/0 to 180 Vdc
Current Rating	10 A
Form Factor	Wall Mount
