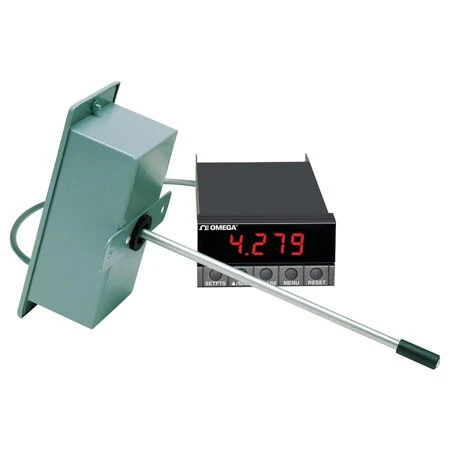

Duct Pressure Transmitters With Selectable Ranges & NEMA 4 Case

Original price was: $313.23.Current price is: $97.99.

Duct pressure transducer and static pressure probe integrated as one unit
Up to 3 field selectable ranges in a single unit
Rugged NEMA-4 enclosure with external mounting bracket
Short circuit and reverse polarity protected

SKU: PX276-05GI Categories: Pressure Measurement, Pressure Transducers Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

The PX276 is a rugged duct pressure transmitter that offers up to 3 field-selectable ranges in one unit. The PX276 incorporates a NEMA 4 (IP65) enclosure and a static pressure probe in one unit for ease of installation and accurate static duct pressure readings.

SPECIFICATIONS
Excitation: 12 to 40 Vdc
Output: 4 to 20 mA (2 wire)
Accuracy: ±1.0% FS
Operating Temperature: -18 to 80°C (0 to 175°F)
Compensated Temperature: -4 to 65°C (25 to 150°F)
Thermal Effects: 0.02%URL/°C (±0.0125% URL/°F)
Proof Pressure: 10 psi
Media Compatibility: Clean, dry air or inert gas
Termination: Screw terminal block
Enclosure: Enamel-coated, 18 GA steel enclosure with 6061T aluminum probe; NEMA 4 (IP65) rating
Weight: 454 g (1.0 lb)

Pressure Range	0 to 5 inH2O
Pressure Type	Gauge
Accuracy Class	> 0.25%
Accuracy Value(compensated range)	±1%
Output Signal	Current
Electrical output	4 to 20 mA
Pressure Port Type	8 in Wand
Connection/Termination	Terminal Block
Operating Temperature Range	-18 to 80 °C (0 to 176 °F)
Additional Features	Rangable
