Easy-view Flow Meters For Water And Oil

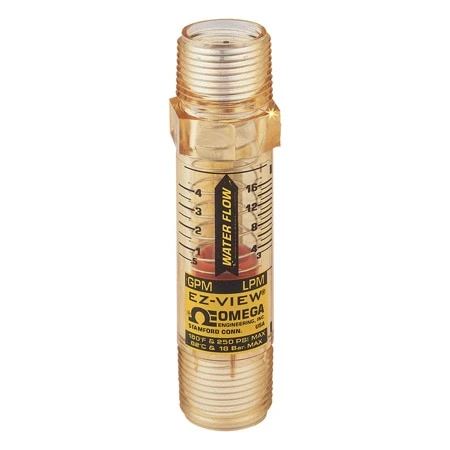

The OMEGA™ FL-9000 EZ-View flowmeters provide accurate, in-line indication of oil or water flow rates at an economical cost. These meters utilize a spring and piston mechanism within a polysulfone metering tube. The EZ-View meters are designed to mount in any position with no straight pipe runs required.

SPECIFICATIONS
Accuracy: ±5% FS
Repeatability: ±1% full scale
Material: Polysulfone, T300 series stainless steel spring, Buna flow indicator ring, Buna O-rings (on units with brass end fittings)
Dimensions: 38.1 mm (1½”) across flats
   FL-9200: 196.8 mm (7¾”) L
   FL-9000 and 9100: 133 mm (5¼”) L
Connection:
   FL-9200: Fits ¾” nominal (7/8″ OD) or 1″ nominal (1-1/8″ OD) Type M Copper Tubing;
   FL-9000- and FL-9100: 1 NPT, Male
Max. Temperature: 121°C (250°F)
Max. Pressure: 22.4 bar (325 psig)

Model No.–NPT Fitting		Ranges (GPM)	Model No.– Solder Fitting	Ranges-Water (GPM)
Water	Oil*
FL-9004	FL-9104	0.5-4	FL-9204	0.5-4
FL-9007	FL-9107	1.0-7	FL-9207	1.0-7
FL-9010	FL-9110	1.0-10	FL-9210	1.0-10
FL-9016	FL-9116	1.0-16	FL-9216	1.0-16
FL-9018	FL-9118	3.0-18	FL-9218	3.0-18
FL-9028	FL-9128	4.0-28	FL-9228	4.0-28

* Specific Gravity = 0.876
