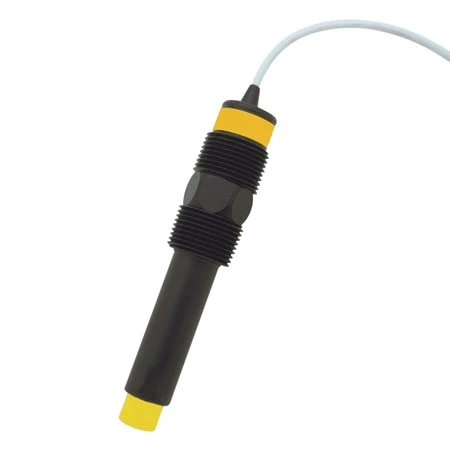

Economical Capacitance Level Switches Selectable NO Or NC

Original price was: $316.00.Current price is: $96.99.

Reliable Detection of Conductive, Light to Medium Coating Liquids
Unique Coating Circuit Rejects the Negative Effects of Coating or Scaling Build-up
All Plastic Construction with PP Materials for Corrosive Environments
Probe and Cable Rated IP68 or NEMA 6 for Submersible Operation in Tanks or Sumps

SKU: LVC-152-R Categories: Control & Monitoring, Level Switches, Process Switches Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

The LVC-152-R capacitance level switch is the perfect switch solution for conductive coating or scaling type liquids. The LVC-152-R is best applied in grounded vessels which contain water based, light to medium coating or scaling type liquids including soap, wastewater and brine solutions. The LVC-152-R capacitance switch detects the presence of liquid or air by measuring the conductive or dielectric values which are present in all materials. The guard circuit rejects the negative effects of coating build-up on the probe by eliminating the coating signal path between the active and reference electrodes. As the probe tip becomes immersed in liquid, the capacitance effect is greatly increased and the switch changes state.

Warning: Do not install sensor within 15.24 cm (6″) of any metal object.

SPECIFICATIONS
Accuracy: ±1 mm (0.04″) in water
Repeatability: ±0.5 mm (0.02″) in water
Dielectric Range: >20 constants
Conductive Range: >100 micromhos
Supply Voltage: 12 to 36 Vdc
Consumption: 25 mA max.
Relay:
GP: 120 Vac/Vdc @ 1 A
CE: 60 Vac/Vdc @ 1 A
Switch Output: Selectable NO or NC
Temperature Rating: -40 to 90°C (-40 to 194°F)
Pressure Rating: 150 psi @ 25°C (76°F), derated @ 1.667 psi per °C above 25°C (76°F)
Probe Material: Polypropylene
Probe Rating: NEMA 6X (IP68)
Mounting Threads: ¾ NPT
Cable Type: 3 m (10′), 4-wire, 22 gage with ground, shield & PP jacket
Dimension: 12.7 cm L (5.0″) x ¾ NPT
Immersion Length: 7 cm (2.6″) from bottom of threads to tip of probe

Media Type	Liquid
Max Operating Pressure	150 psi
Max Process Temperature	90 °C (194 °F)
Wetted Materials	PP
Process Connection Type	NPT Male
Process Connection Size	3/4"
Supply Power	12 to 30 Vdc
Switch Rating and Type	1 A SPST
Probe Length	2.6"
Number of Probe	1
Features	Switch Type Selectable, NO or NC
