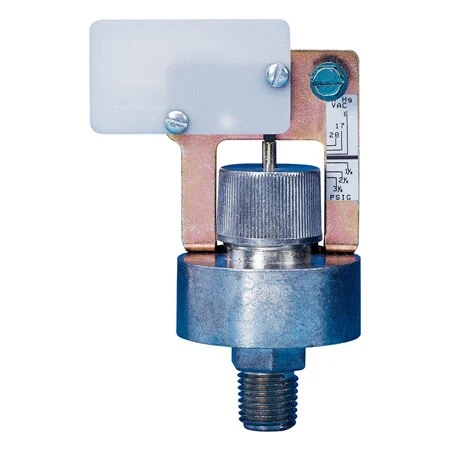

Economical OEM Mechanical Pressure Switch
Original price was: $73.66.$51.56Current price is: $51.56.
- External Scale for Easy Set Point Adjustments
- UL Rated Heavy Duty 15 AMP SPDT Switch Standard
- 100% Quality Satisfaction
- Uncompromising quality, every time.
- Quality You Can Trust
- Your questions, our prompt answers.
SPECIFICATIONS
Switch:15 Amp SPDT silver contacts
Approvals: UL
Process Temp.: -35 to 85°C (-31 to 185°F) 2% set point shift can occur below -23°C (-10°F) or above 52°C (125°F)
Proof Pressure: 600 psig
Cycling: Not to exceed 60 cycles/min
Warranty: 3 years/1 million cycles
Sensor: Aluminum diaphragm
Wetted Parts: Buna-N, aluminum, zinc alloy chromate finish, and loctite sealing compound #271
Enclosure: Switch actuator and bracket steel: irridite finish; adjusting cap and body: zinc alloy chromate finish; switch shield: mylar
Pressure Port: ¼ NPT male
Electrical Conn.: Screw terminals
Size: 92 H x 60 W x 41 mm dia. (3-5/8 H x 2-3/8 W x 1-5/8′ Dia.)
Weight: 210 g (7.4 oz)
| Pressure Range | -28 to -6 inHg, 3 to 40 psi, 30 to 150 psi, 100 to 500 psi |
|---|---|
| Pressure Type | Vacuum, Gauge |
| Deadband Range | 3 to 14 inHg, 2 to 5 psi, 5 to 30 psi, 30 to 120 psi |
| Switch Type | (1) 15 A SPDT |
| Pressure Port Size | 1/4" |
| Pressure Port Type | NPT Male |
| Deadband | Fixed |
