ELC Programmable Logic Controllers (PLC’s) And Modules

The Eaton Logic Controller (ELC) is Eaton Cutler-Hammer’s latest offering into the PLC (Programmable Logic Controller) market. Less than half the size of a typical brick PLC, the ELC is a micro-PLC with features previously found only in larger, much more expensive rack-mount PLCs:

• Built-in digital and analog I/O for low-cost standalone control
• Local I/O expandable to 256; I/O expansion modules connect easily with no extra wiring
• Removable terminal blocks for easy wiring
• 2 serial ports with Modbus RTU supported on both
• Real-time clock/calendar
• High-speed pulse inputs and outputs
• Powerful instruction set:
        — Floating point math
        — Trig functions
        — Clock/calendar instructions
        — Modbus RTU/ASCII instructions
        — High-speed pulse capture/pulse output
        — Interrupts
        — Matrix operations
        — Retentive data storage
        — Stepper motor positioning control
        — PID functions with Autotune
        — Fuzzy temperature control

With the ELC, I/O can be local or highly distributed. All of the ELC specialty and analog modules (analog I/O, thermocouple, RTD, motion control) are capable of remote connection via a 2-wire RS485 interface using Modbus protocol. Additional remote I/O modules are available (see link below.)
Choose from one of 5 different controller styles:

• PB models:  14 local I/O expandable to 256, 3.8K program steps, 2 serial ports
• PC models:  12 local I/O expandable to 256, 7.9K program steps, 2 serial ports, clock/calendar, 2 setpoint potentiometers
• PH models:  12 local I/O expandable to 256, 7.9K program steps, 2 serial ports, clock/calendar, 2 setpoint potentiometers, 100 KHz high-speed counters and pulse outputs

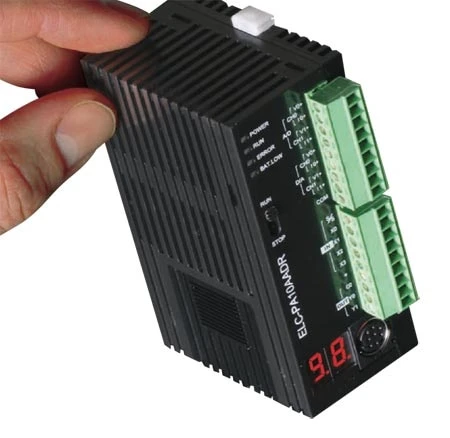

• PA models:  10 local I/O (including analog I/O) expandable to 256, 7.9K program steps, 2 serial ports, clock/calendar, 2 configurable 7-segment displays
• PV models:  28 local I/O expandable to 512, 16K program steps, 2 serial ports, clock/calendar, 2 setpoint potentiometers, 200 KHz high-speed counters and pulse outputs

The ELC-PH12 model PLC provides high-speed pulse outputs which can be used to drive any of Omega’s step & direction stepper drives. The ELCSoft ladder logic software has built-in step motor functions which make programming your motion control application easy. The STM23S-2AN is an integrated stepper drive + stepper motor which accepts pulses from a PLC. Add the ELCSoft programming software, ELC-CBPCELC1 programming cable, and OMPS150A24 power supply for a complete motion-control system that costs less than $1000.

General-Purpose Signal Conditioners for any PLC

***New!*** Universal Remote I/O Modules: Digital, Analog, Thermocouple, RTD

Order a starter kit! Includes an ELC controller, ELC graphics panel, power supply, cables, & software. See “Accessories” below.

PLEASE NOTE: All of the PLCs require the ELCSOFT software and either ELC-CBPCELC1 or ELC-CBPCELC3 programming cable.
