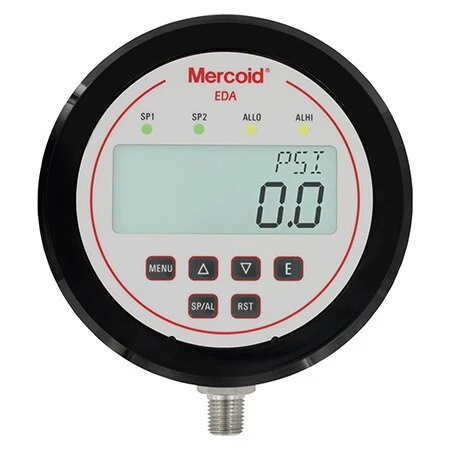

ELECTRONIC PRESSURE CONTROLLER
Original price was: $378.00.$98.99Current price is: $98.99.
- Can replace a separate gage, two switches, and a transmitter in a system
- Compact design is economical and space saving
- Two fully adjustable SPDT relays for precise control and alarms
- LED indicates and large, backlit display for high readability
- 100% Quality Satisfaction
- Uncompromising quality, every time.
- Quality You Can Trust
- Your questions, our prompt answers.
Dwyer Instruments is now a DwyerOmega product brand
Product Applications
- Process control
- Compressor control
- Filter status
- Duct or building static pressure
- Damper and fan control
Features
Display Units: psi, kg/cm², bar, in Hg, ft w.c., kPa, MPa, %FS, in w.c., mbar, cm w.c., mm Hg, or oz/in² (choices depend on range).
Test Mode:Simulates input over the range without pressuring to easily test switches and transmitter output feature.
Fail-safe: For sensor failure, over pressure, high temperature limit, low temperature limit, or keypad short. User chooses if relay is de-energized, energized, or no action. With transmitter option, user chooses an output of 3.6 mA 22 mA, or no action.
Alternation: Selectable alternation of set points between the relays for even wear on duplex pump applications.
Versatile Compact Package: Can replace a separate gage, two switches, and a transmitter in a system saving, money, installation time, and panel space.
Fully Programmable:To meet simple or complex application needs.
Weatherproof Housing: Ideal for a wide variety of applications with panel mount, flush mount, or pipe mount ability.
| Pressure Range | 0 to 20 psi, 0 to 60 psi, 0 to 100 psi, 0 to 150 psi, 0 to 300 psi, 0 to 600 psi, 0 to 1,000 psi, 0 to 1,500 psi, 0 to 3,000 psi |
|---|---|
| Deadband Range | 0 to 20 psi, 0 to 60 psi, 0 to 100 psi, 0 to 150 psi, 0 to 300 psi, 0 to 600 psi, 0 to 1,000 psi, 0 to 1,500 psi, 0 to 3,000 psi |
| Features | 4-20 mA output, 120/240 VAC voltage option, None, 120/240 VAC voltage option, 4-20 mA output |
| Switch Type | (2) 1 A SPDT |
| Pressure Type | Gauge |
| Pressure Port Size | 1/4" |
| Pressure Port Type | NPT Male |
| Deadband | Adjustable |
