Electronic Pressure Switch With OLED Display And Alarm Outputs

Electronic Pressure Switch With OLED Display And Alarm Outputs - Image 2

Electronic Pressure Switch With OLED Display And Alarm Outputs - Image 3

Electronic Pressure Switch With OLED Display And Alarm Outputs

Original price was: $332.00.Current price is: $95.99.

5-digit OLED display
2 alarm outputs
350° rotating display
Durable housing rated IP67

Pressure Range

Pressure Port Size

Deadband Range

Clear

SKU: PSW2100-005C Categories: Pressure Measurement, Pressure Switches Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

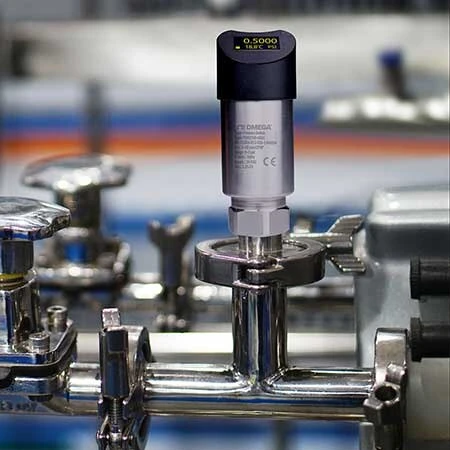

Omega’s PSW2100 electronic pressure switches feature a fully programmable digital interface with monosilicon sensor technology. Setup and programming is painless with the use of three keys and a premium, easy-to-read 1” wide 5-digit OLED display. Visibility is maximized with a display capable of rotating 350° and also with two LEDs providing visual alarms. With the rotation capabilties and a rugged, well-protected IP67 housing rating, this pressure switch is capable of high performance in a wide variety of environments and installation positions. These features coupled with high accuracy make this switch a premium, user-friendly option for pressure measurement and monitoring.

Electronic Pressure Switch With OLED Display And Alarm Outputs -Omega Engineering Sales Store PSW2100 montage 400

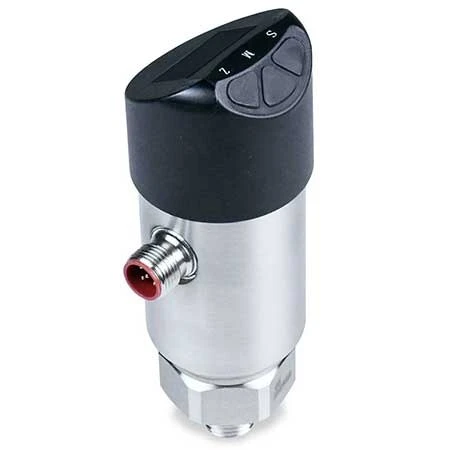

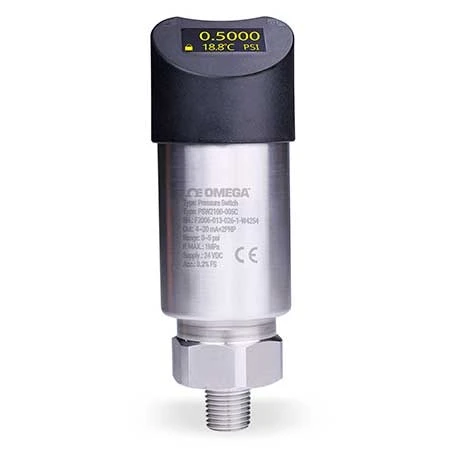

PSW2100 – Alternative Views

Pressure Range	0 to 5 psi, 0 to 35 psi, 0 to 150 psi, 0 to 1500 psi, 0 to 400 psi, 0 to 5800 psi
Pressure Port Size	1/4", 1/2"
Deadband Range	0 to 5 psi, 0 to 35 psi, 0 to 150 psi, 0 to 1500 psi, 0 to 400 psi, 0 to 5800 psi
Switch Type	2 PNP
Pressure Type	Gauge
Pressure Port Type	NPT Male
Deadband	Adjustable
Features	NEMA 6/IP67 Enclosure, OLED Display
