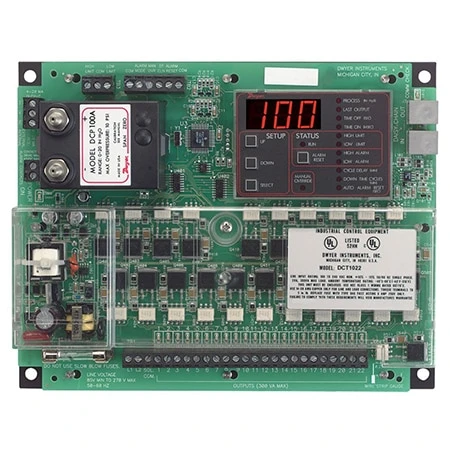

Expandable Timer Controller

Original price was: $336.00.Current price is: $96.99.

Universal power requirements match any line powered application offering versatility
Built in wire strip gauge for ease of installation
Optional weather and explosion proof housings for harsh environments

Number of Channels

Supply Voltage

Form Factor

Maximum Current/Channel

On Time

Off Time

Additional Features

Clear

SKU: DCT1006 Categories: Control & Monitoring, Option Boards Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

Dwyer Instruments is now a DwyerOmega product brand.

The Series DCT1000 Dust Controller Timer simplifies on-demand cleaning requiremens by eliminating the need for external devices such as pressure switches, relays and timers. The modular design allows for use as a continuous or on-demand cleaning control using the optional plug-in pressure modules.

The Series DCT1000 is the same size for all three versions of channel capacity, 6, 10 and 22 channels allowing one board size to be the standard for one enclosure. The DCT1000 family was designed specifically for pulse-jet type dust collectors. It also has the capability to automatically detect when a channel expander has been connected, expandable up to 255 channels.

Expandable Timer Controller -Omega Engineering Sales Store DCT1000 dia

Applications:

Dust Collection
Pneumatic Conveying
Cement Batch Plants

Model Chart

Model	Number of Channels	Power Requirements	DP range
DCT1006	6	85 to 270 Vac 50/60 Hz	N/A
DCT1010	10	85 to 270 Vac 50/60 Hz	N/A
DCT1022	22	85 to 270 Vac 50/60 Hz	N/A
DCT1110	10	85 to 270 Vac 50/60 Hz	N/A
DCT1122	22	85 to 270 Vac 50/60 Hz	N/A
DCP100A	N/A	N/A	10″ w.c.
DCP200A	N/A	N/A	20″ w.c.

Options Chart

add as a suffice to model number

-AT	Aluminum Tag
-COC	Certificate of Conformance
-COO	Certificate of Origin – US
DCP100A	Pressure Module 10″ w.c.
DCP200A	Pressure Module 20″ w.c.
-EXPL	Explosion Proof Housing
-ST	Stainless Steel Tag
-WP	Weatherproof housing
-WPP	Weatherproof Housing with Pressure Connection
-WPPS	Weatherproof Housing with Pressure Connection & Switch
-WPPH	Weatherproof Housing with Horizontal Pressure Connections
-WPPHS	Weatherproof Housing with Horizontal Pressure Connections & Switch

Number of Channels	6, n/a, 10, 22
Supply Voltage	85-270 Vac, n/a
Form Factor	Panel, n/a
Maximum Current/Channel	3A, n/a
On Time	10 – 600 msec, n/a
Off Time	1 – 255 seconds, n/a
Additional Features	cUL, UL, n/a
