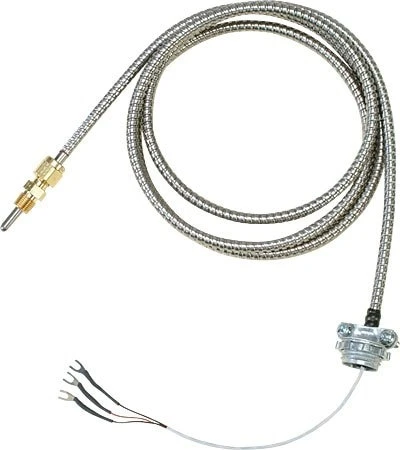

Extruder RTD Probes With Compression Fittings

Original price was: $112.65.Current price is: $78.86.

Sensors Contain Precision 100 Ohm Class B DIN Platinum Thin Film Elements in 3-Wire Configurations
Standard Temperature Range is -50 to 260ºC. Optional High Temperature (500ºC) Fiberglass Insulated Cable Construction is Available
These RTD Sensors are Ideal For Plastic Process Equipment and Other Rugged Environments
Probe is Made of 304SST With a 3/16′ Diamater, Lenghts Are As Specified in The Model Numbers, All Models Include PFA Insulated, PFA Jacketed Cables With SST Flex Amor.

Process Temperature Max

Process Temperature Range

Additional Feature

Termination Connection Type

Cable Length

Cable Insulation

Probe Length

Clear

SKU: CFTF-000-RTD-2-60-1-CC Categories: Probes with Lead Wires, Temperature Probes Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

These RTD sensors are used extensively in plastic processing equipment and other rugged environments. These sensors are typically installed using the supplied 1/8NPT brass compression fitting, other fittings are available.

Standard configurations are based on the most popular lengths, with straight sheaths and with 90º bends. The included flex hose over the cable protects the wires from damage in rough environments. Standard terminations include spade lugs and Omega’s OTP heavy duty connector (round pins).

Process Temperature Max	480, 260
Process Temperature Min	-50
Sheath Material	304 Stainless Steel
Number Of Wires	3
Nominal Output	100 Ω
Accuracy	Class B per IEC60751
Process Connection Size	1/8" NPT
Sensor Application	Immersion Probe
Process Temperature Unit	°C
Process Temperature Range	-50 to 480°C (-58 to 900°F), -50 to 260°C (-58 to 500°F)
Category	RTD
Additional Feature	Straight Probe, 90 Degree Angle Probe
Termination Connection Type	Spade Lugs, 3-Prong Standard Connector, Stripped Leads
Cable Length	60 in, 120 in
Cable Insulation	Fiberglass with Armored Cable, PFA with Armored Cable
Probe Length	2 in, 4 in, 6 in
Probe Diameter	0.187 in
