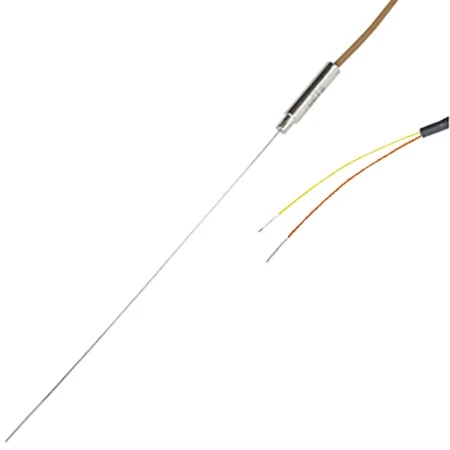

Fine Diameter Thermocouple Probes With Lead Wire

Original price was: $50.13.Current price is: $35.09.

Fast Response Time
Stainless Steel Sheath
Made from Special Limits of Error Material
1 m (40′) PFA Insulated, 24 AWG Stranded Lead Wire

Process Temperature Min

Process Temperature Max

Color Code Standard

Probe Length

Probe Diameter

Junction Type

Sheath Material

Accuracy

Process Temperature Range

Clear

SKU: TJM-CA316-M075U-500 Categories: Probes with Lead Wires, Temperature Probes Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

Fine diameter transition joint thermocouple probes have the sheath crimped to a stainless steel barrel which is sealed with epoxy and has a PFA insulated lead wire. Thermocouple junctions are available as grounded, for fastest response time and lower cost; or insulated, for electrical isolation of the thermocouple from the sheath.

Sensor Temperature Range:
0.25 mm Diameter probes: -40 to + 260°C (-40 to 500°F)
0.50 mm and 0.75 mm Diameter probes: -100 to + 750°C (-148 to 1382°F)
1.0 mm Diameter probes: -100 to + 1100°C (-148 to 2010°F)
Sheath material:
0.25mm and 0.75 mm Diameter probes: 316 stainless steel
0.50 mm and 1.0 mm Diameter probes: 310 stainless steel
Transition joint: 6.4 mm (¼”) diameter x 32 mm (1 ¼”) long pot seal. Max. Temp. 200°C (390°F)
Lead Wire: 1 m (40″) of PFA insulated 7/0.2 mm (24 AWG) with stripped ends. Max. Temp. 250°C (480°F)

Process Temperature Min	-100, -40
Sensor Type	Direct Contact
Cable Length	1 m
Wire Gauge	24 AWG
Cable Insulation	PFA
Sensor Application	Immersion Probe with Fast Response Time
Process Temperature Unit	°C
Thermocouple Type	K
Category	Thermocouple
Process Temperature Max	'+750, '+1100, '+260
Color Code Standard	ANSI (Standard), IEC
Probe Length	500 mm, 1000 mm, 150 mm, 200 mm, 300 mm
Probe Diameter	0.75 mm, 0.50 mm, 1.0 mm, 0.25 mm
Junction Type	Ungrounded, Grounded
Sheath Material	316 Stainless Steel, 310 Stainless Steel
Accuracy	IEC Class 1, ANSI SLE
Process Temperature Range	-100 to + 750°C (-148 to 1382°F), -100 to + 1100°C (-148 to 2010°F), -40 to + 260°C (-40 to 500°F)
Termination Connection Type	Bare wire
