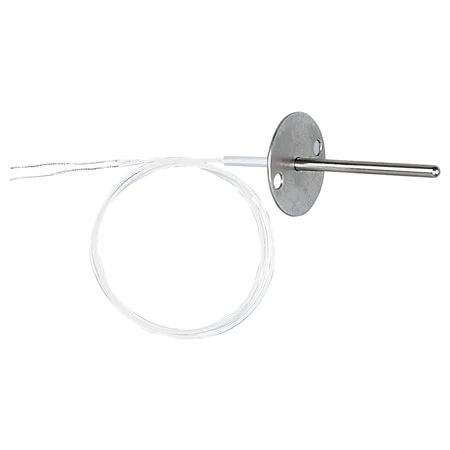

Flange Mounted Non-Linear Thermistor Probes With Lead Wire

Original price was: $75.50.Current price is: $52.85.

Mounting Flange is Pre-Drilled with #6 Screw Clearance Holes to Provide For Easy Mounting In Ducts and Flow Systems
Small Thermal Mass Provides Rapid Response to Temperature Changes
Available with Resistances of 2252 Ohms, 3000 Ohms, 5000 Ohms, 10,000 Ohms and 30,000 Ohms at 25°C
Standard Accuracy is ±0.2°C from 0 to 70°C, Optional Accuracy of ±0.1°C from 0 to 70°C is Available

Accuracy

Nominal Resistance

Cable Length

Termination Connection Type

Clear

SKU: ON-960-44004-40 Categories: Probes with Lead Wires, Temperature Probes Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

This air-flow sensor is designed to satisfy the many requirements of air temperature measurement and control in air conditioning systems. The flange provided lends itself to easy mounting in Duct systems and Flow Hood equipment.

Accuracy	±0.2°C, ±0.1°C
Nominal Resistance	2252 Ω, 3000 Ω, 10,000 Ω, 5000 Ω, 30,000 Ω
Cable Length	40 in, 12 in, 240 in
Termination Connection Type	Stripped Leads, Phone Plug
Category	Thermistor
Process Temperature Unit	°C
Process Temperature Min	0
Process Temperature Max	100
Process Temperature Range	0 to 100°C (32 to 212°F)
Sensor Application	Immersion Probe
Sheath Material	304 Stainless Steel
Probe Diameter	0.125 in
Probe Length	1.50 in
Cable Insulation	PFA
Wire Gauge	28 AWG
