Flanged Mounted RTD Probes With Lead Wire
Original price was: $187.62.$95.99Current price is: $95.99.
- High-Accuracy Class “A” 100 Ohm DIN Platinum Element Standard
- Temperature Coefficient (Alpha) = .00385 ohm/ohm/°C
- Temperature Range Is -200 to 230ºC
- Includes Stainless Steel Sheath and Flange with Pre-Drilled Mounting Holes for Easy Installation
- 100% Quality Satisfaction
- Uncompromising quality, every time.
- Quality You Can Trust
- Your questions, our prompt answers.

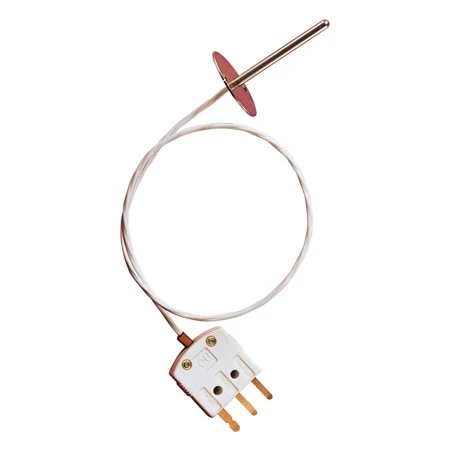

The RTD-860 sensor is designed for easy installation into air ducts, laminar flow booths or other applications where temperature measurements must be taken through thin walls or structures. The sensor features an all stainless steel welded construction consisting of a closed-end tube and mounting plate. The platinum RTD sensor is housed in the tip of the 1/8″ diameter tube for fast response. The 1″ dia. mounting plate has two (2) 0.15″ diameter holes for convenient mounting, and the sensor is supplied with 1 meter (40″) of PFA insulated &
| Termination Connection Type | 3-Prong Miniature Connector, Stripped Leads |
|---|---|
| Category | RTD |
| Process Temperature Unit | °C |
| Process Temperature Min | -50 |
| Process Temperature Max | 230 |
| Process Temperature Range | -50 to 230°C (-58 to 446°F) |
| Sensor Application | Air Probe |
| Accuracy | Class A per IEC60751 |
| Nominal Resistance | 100 Ω |
| Number Of Wires | 3 |
| Sheath Material | 304 Stainless Steel |
| Probe Diameter | 0.125 in |
| Probe Length | 1.50 in |
| Cable Insulation | PFA |
| Wire Gauge | 26 AWG |
| Cable Length | 40 in |
