Flat Surface In Line PH/ORP Electrodes
Original price was: $230.52.$99.99Current price is: $99.99.
- 16 Month Shelf Life
- Designed For 3/4′, 1′, or 2′ Pipe Tees
- Acryl Gel Standard For High Temperature Applications
- CPVC Construction
- 100% Quality Satisfaction
- Uncompromising quality, every time.
- Quality You Can Trust
- Your questions, our prompt answers.

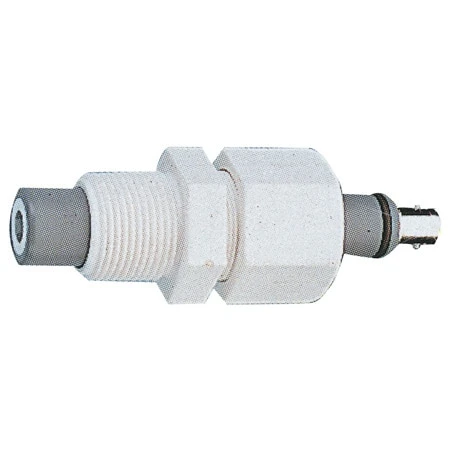

The PHE/ORE-5460 in-line pH and ORP electrodes feature a flat self-cleaning abrasion-free surface. When exposed to turbulent flow, the resulting scrubbing action keeps the electrodes clean. The electrodes can be used in applications with 0 to 88°C (32 to 190°F) temperatures, pressures up to 6.89 bar (100 psig) and a 0 to 14 pH measurement range (0 to 12 without sodium ion error). Having fresh material sweeping past the electrode’s surface improves response time as well as accuracy, especially for the measurement of oily waste fluids, lime slurries, flocculant and emulsions. The electrodes accept a cable assembly with a gland mounted in a 3/4″, 1″or 2″ NPT tee.
In-Line electrodes are ideal for relacing existing threaded electrodes. They are used in applications where flow can be shut off for electrode maintenance.
The high temperature Acrylamide gel is supplied as standard with the PHE-5460 electrodes. These are only available with CPVC construction.
Electrode Options
| Ordering Suffix | Description | Available In Line Models |
| -HF | Fluoride Resistant | All pH including PHE-5460-GL |
| -GL | Ground Loop | PHE-5460 only (3/4″) |
| -LC | Low Conductivity | All pH |
Please download PDF file for full specifications and a complete list of available models.
| Measurement Type | pH, ORP |
|---|---|
| Range | 0 to 14 pH, ±2000 mV |
| Process Connection Size | 3/4", 1", 2" |
| Wetted Materials | CPVC |
| Max Operating Pressure | 100 psi |
| Max Temperature | 87 °C (190 °F) |
| Process Connection Type | NPT Male |
| Features | Fittings Required for Installation |
