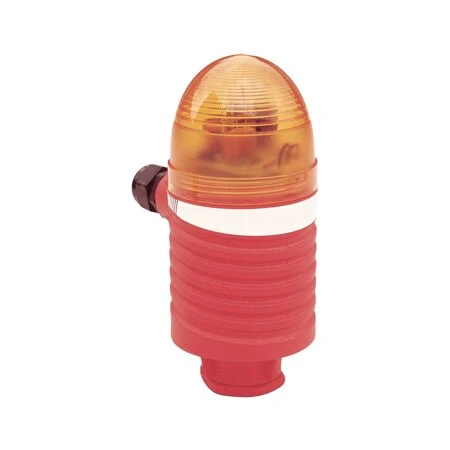

Flow/No Flow Single Sensor Controller With Strobe Alert

Original price was: $361.00.Current price is: $97.99.

Calls Immediate Attention to Alarm Conditions
High Intensity Strobe Light Reduces Operator Error
Adjustable Time Delay Relay
Controls Pumps, Valves and Alarms

SKU: FLCN-101 Categories: Control & Monitoring, Flow Switches, Process Switches Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

OMEGA’s flow alert calls attention to alarm conditions. For operator alert to low flow conditions, the flow alert offers an excellent solution to this problem. An amber lens distributes the high intensity strobe light in a pattern which calls immediate attention to alarm conditions. The visual alert combined with a controller makes it both cost effective and easy to install.

SPECIFICATIONS
Voltage Input: Selectable, 120 or 240 Vac, 50 to 60 Hz
Max Consumption: 5 watts
Lighting Element: High intensity lamp
Brightness: Greater than 50,000 CP
Relay Output: Isolated and sealed single pole double throw (SPDT) relay, Form C
Switching Mode: Selectable, NO or NC states
Max. Relay Switching Voltage: 120 Vdc or 240 Vac
Max. Switched Current: 10 amps
Time Delay: Adjustable from 0.15 to 60 seconds
Strobe Type: Xenotube
Strobe Flash: 1 per second
Max. Temp. Rating: 70°C (158°F)
Sensor Voltage Supply: 13.5 Vdc @100 mA
Mounting Connection: 3/4 NPT
Conduit Connection: 1/2 NPT
Enclosure Rating: NEMA-4X (IP65)
Enclosure Material: Polypropylene (PP), flame retardant
Dimensions: 7.1 D x 16.2 cm H (2.8 x 6.4′) x 3/4 NPT
