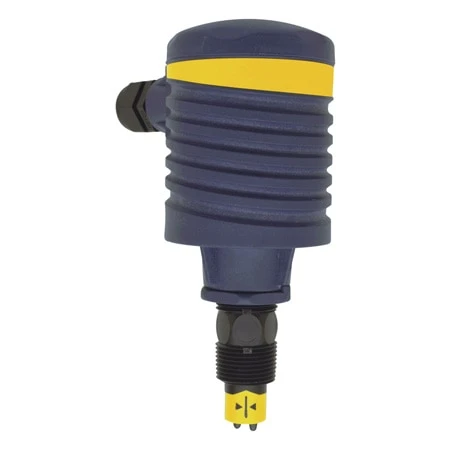

Flow Switch With Compact Relay Controller

This switch package offers a complete solution for flow or no-flow switching in pipes or ducting up to 0.3 m (12′). The compact relay controller reliably actuates valves, pumps, or blowers rated up to 1/2 hp. Common applications include low-flow pump or process protection. To complete the instrumentation package, simply select the switch configuration in accordance with the liquid or gas used in your application.

SPECIFICATIONS
RELAY CONTROLLER
Supply Voltage: 120/240 Vac 50/60 Hz
Consumption: 0.25 A
Relay Type: (1) SPDT
Relay Current: 10 A, 250 Vac, 1/2 hp
Relay Mode: NO or NC selectable
Time Delay: 0 to 60 s
Temp Range: -40 to 70°C (-40 to 158°F)
Enclosure Rating: NEMA 4X (IP66)
Enclosure Material: Polypropylene (UL 94VO)
Enclosure Rotation: 300° swivel base
Conduit Connection: 1/2 NPT
SENSOR
Range: 0.04 to 3 ft/s (liquids)
Accuracy: ±5% of setpoint at constant temperature and flow rate
Response Time: 10 s (approx.)
Setpoint Drift with Fluid Temperature: 0.5%/°C
Fluid Temperature: 60°C (140°F)
Max Fluid Pressure:
   PP or PVDF: 150 psi @ 25°C (77°F) derated @ 1.7 psi/°C above 25°C (77°F)
Process Connection: 3/4 MNPT
Dimensions: 208 L x 71 mm Dia (8.2 x 2.8′)
