Flow Through Thermocouple Sensor Assembly For 1/4″ Tubes

Original price was: $230.16.Current price is: $99.99.

Flow Through Temperature Sensor easily fits into existing piping
Specially made to measure temperature in a 6 mm (1/4″) diameter tube
Available in Type J, K, T, E Thermocouples

Thermocouple Type

Process Temperature Max

Process Temperature Range

Clear

SKU: FTP-E-2-SMP-M Categories: Probes with Integral Connectors, Temperature Probes Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

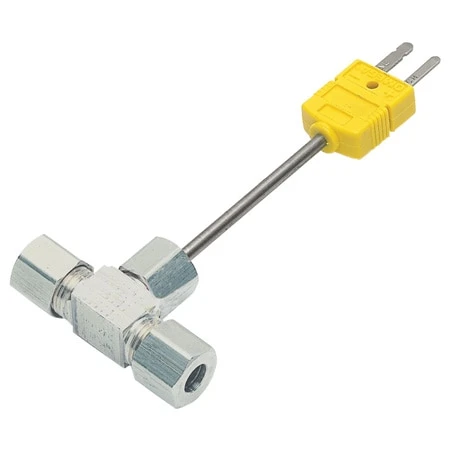

Temperature probes specially made to measure temperature in a 6 mm (1/4″) diameter tube. The 51 mm (2″) stem protects the connector from the extreme environment of the pipe. The 304 stainless steel probe give excellent corrosion resistance for most gases or fluids. The FTP Probe is easy to install with 6 mm (1/4″) diameter compression fittings on input and output flow ports.

Available in Types K, J, T or E Thermocouples, the FTP Probe comes with a miniature Thermocouple connector to easily connect to your instruments.

Thermocouple Type	E, J, K, T
Process Temperature Max	820, 720, 1150, 370
Process Temperature Range	0 to 820°C (32 to 1510°F), 0 to 720°C (32 to 1300°F), 0 to 1150°C (32 to 2100°F), 0 to 370°C (32 to 700°F)
Category	Thermocouple
Process Temperature Unit	°C
Process Temperature Min	0
Sensor Application	Immersion Probe
Process Connection Size	Process Tee Fitting
Sheath Material	304 Stainless Steel
Junction Type	Grounded
Probe Diameter	0.25 in
Probe Length	2 in
Termination Connection Type	Miniature Connector
Color Code Standard	ANSI
