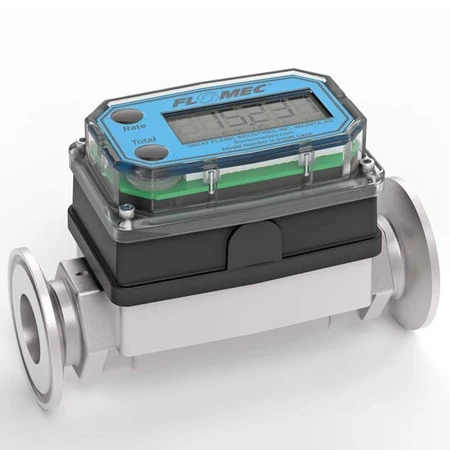

G2-Series Brewery & Food Industry Indicating Flow Meters

Original price was: $359.00.Current price is: $97.99.

High accuracy meter
Meter is designed for thin fluids < 100 cP
Modular design allows for use with Output Modules, Sensors and Remote Display Kits
2 Totals (Batch Total = Resettable, Total = Non-Resettable) Rate of Flow, Factory calibrated in gallons or litres. Field calibratable. Includes non-volatile totals.

Flow Range

Accuracy

Output Signal

Max Process Temperature

Process Connection Size

Features

Clear

SKU: G2S07TH9GMX Categories: Flow Instruments, Flow Meters, Turbine Flow Meters Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

No more “eye-balling” levels – Make your perfect recipe every time. G2 High-Temp Sanitary meter is the best flow meter for brewing and other Food and Beverage Industry applications. It is highly dependable and affordable, making it a great choice for small-batch brewers. The G2-Series is extremely repeatable so quality control is easy to maintain. Whether you measure strike water, sparge water, wort transfer to the fermenter, or your final batch volume, the G2 can help you at all grain brewing stages. The G2-Series is available as a Rate and Total Flow Indicator only, or with Indication and 4-20 mA and Pulse outputs.

G2-Series Brewery & Food Industry Indicating Flow Meters -Omega Engineering Sales Store G2 Series

Flow Range	2 to 20 GPM (7.6 to 76 LPM), 1 to 10 GPM (3.8 to 38 LPM), 5 to 50 GPM (19 to 190 LPM), 10 to 100 GPM (38 to 380 LPM), 20 to 200 GPM (76 to 760 LPM)
Accuracy	±1%, ±1.5%, ±0.75%
Output Signal	None, 4 to 20 mA, Scaled Pulse (NPN)
Max Process Temperature	85 °C (185 °F), 60 °C (140 °F)
Process Connection Size	3/4", 1/2", 1", 1-1/2", 2"
Features	K-Factor 1000 PPG (291 PPL), K-Factor 2500 PPG (660 PPL), K-Factor 565 PPG (149 PPL), K-Factor 215PPG (57 PPL), K-Factor 100 PPG (26 PPL)
Category	Meter
Media Type	Liquid
Max Operating Pressure	1500 psi
Wetted Materials	316 SS, Ceramic, Tungsten Carbide, PVDF
Process Connection Type	Tri-Clamp
Display	LCD
