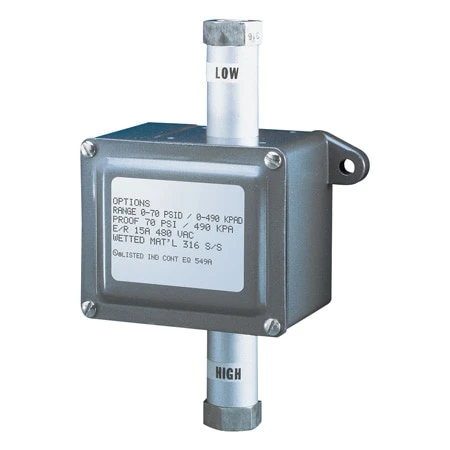

General Purpose Industrial Differential Pressure Switch

Original price was: $397.00.Current price is: $99.99.

UL Listed
15 Amp SPDT
Easy Adjustments
Vibration-Resistant Setpoints

SKU: PSW-151 Categories: Pressure Measurement, Pressure Switches Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

PSW-150 Series differential switches are ideally suited for laboratory and industrial applications where a rugged, repeatable, and dependable switch is required. For ease of installation, ports are tagged high and low, and the setpoint adjusts over the entire range.

SPECIFICATIONS
Approvals: UL listed
Repeatability: ±1% range
Ambient Switch Shift: 0.04% range/°C
Storage Temperature: -55 to 75 °C (-67 to 167°F)
Ambient Switch Temp: -40 to 70°C (-40 to 158°F)
Process Temp: Brass and phosphor bronze: 120°C (248°F); 316SS: 260°C (500°F)
Shock: Setpoint repeats after 15 g at 10 ms duration
Vibration: setpoint repeats after 2.5 g at 5 to 500 Hz
Output: (1) SPDT, 15 Amp 125/250/480 Vac
Enclosure: Cast aluminum, gray enamel finish
Electrical: 22 mm (7/8′) dia. conduit port, screw terminals
Pressure Port: 1/4 NPT Female
Weight: 0.9 kg (2 lb)

Pressure Range	0 to 6 psi, 0 to 25 psi, 0 to 70 psi, 10 to 90 psi
Switch Type	(1) 15 A SPDT
Pressure Type	Differential
Pressure Port Size	1/4"
Pressure Port Type	NPT Female
Deadband	Fixed
